Air Cooled Chillers
HA-S Serisi
Model HA-S HS
The HA-S HS Series comprises air-cooled water chillers with hermetic scroll compressors on a single gas circuit, offered in one- to three-compressor configurations across a wide capacity range. Environmentally friendly R-410A refrigerant, microprocessor control, a direct-expansion evaporator and a stainless steel reserve tank make it a dependable choice for process and comfort cooling. Condensers and the power/control panel are PLANER-built and comply with CE 2006/95/EC. Options: inverter compressor and pump, remote monitoring module, EC fan.
- Cooling capacity
- 13,5 – 375,9 kW
- Refrigerant
- R-410A
Technical data
Select a model

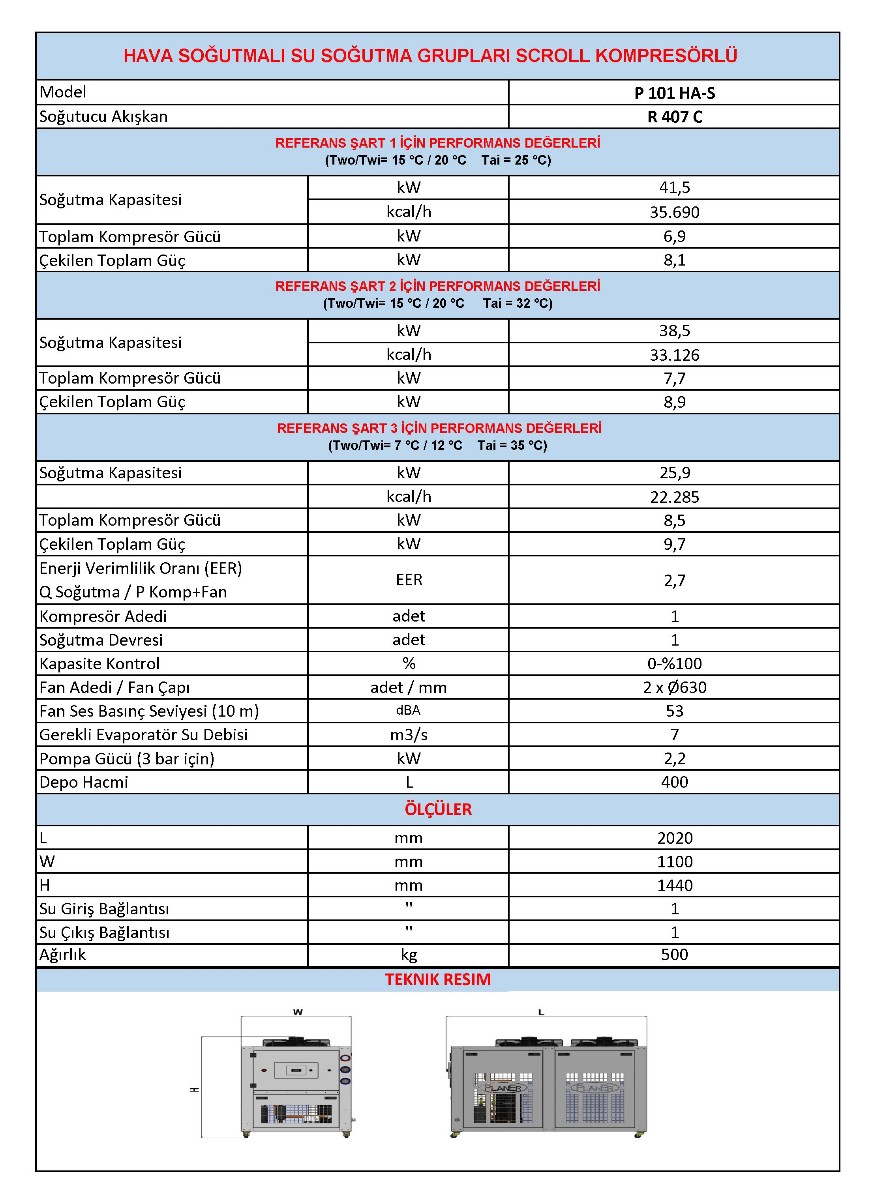

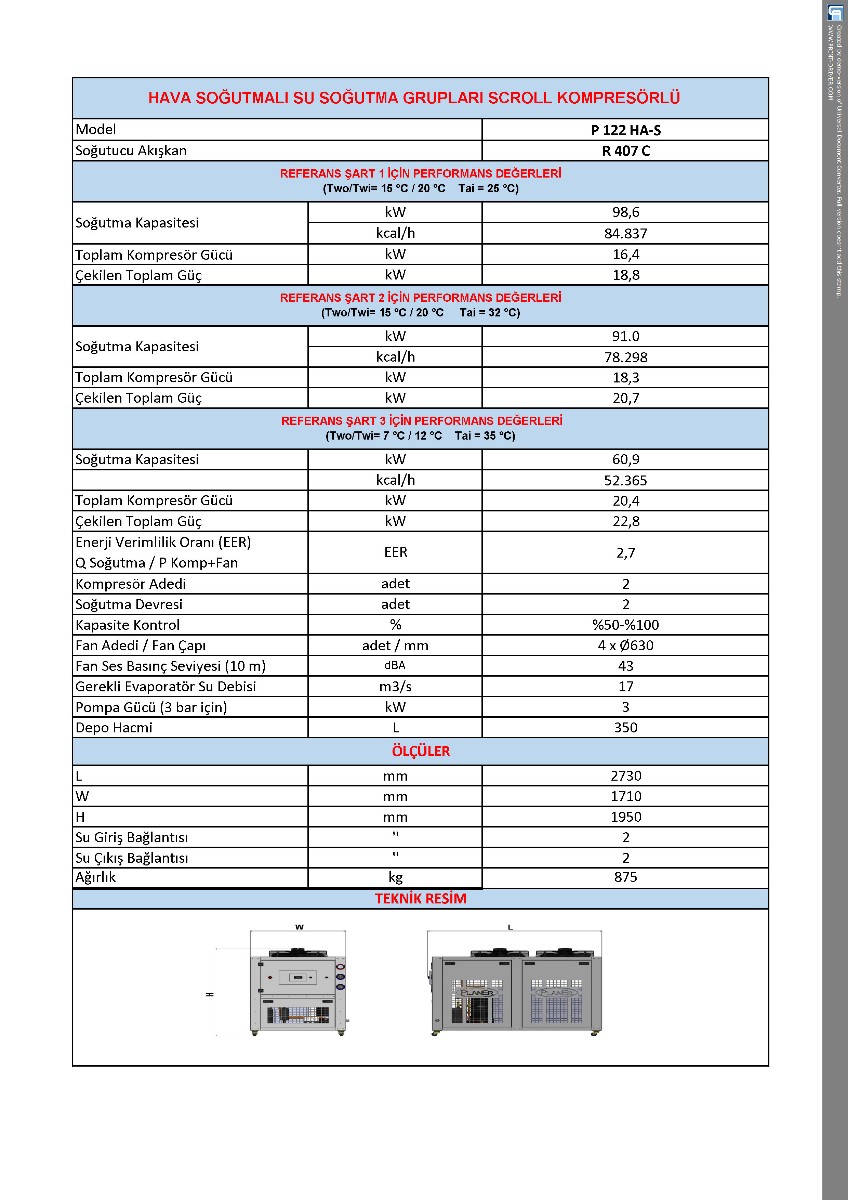

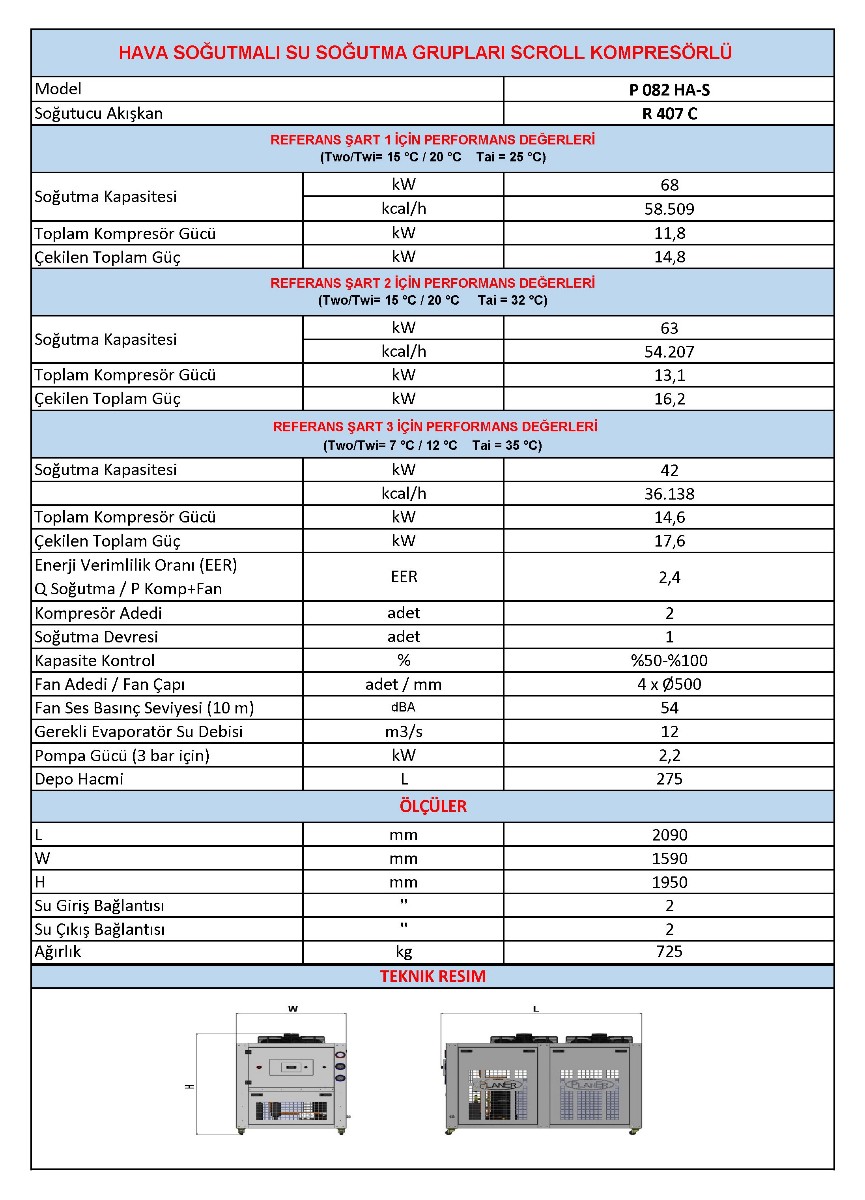

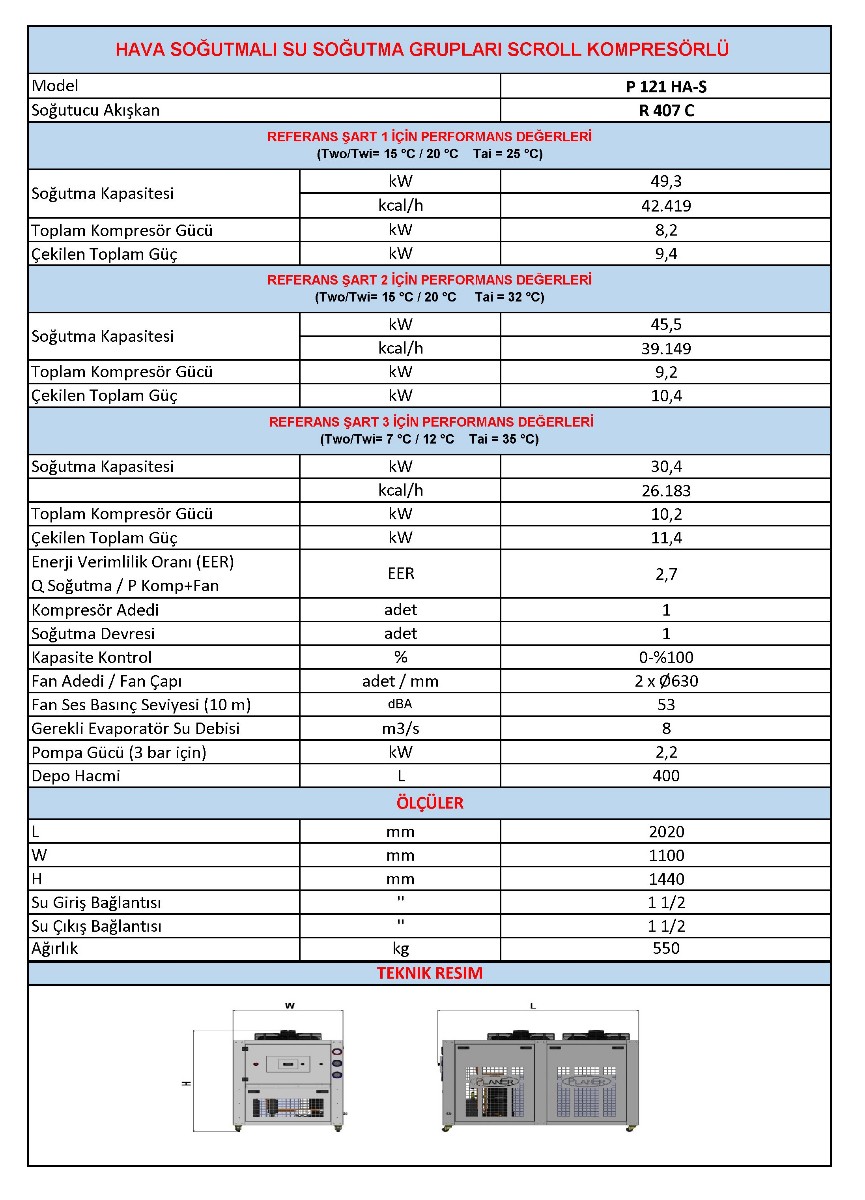

Performance figures, dimensions and the datasheet for every model in the series.
| Cooling Capacity | kW | 20,7 |
|---|---|---|
| Cooling Capacity | kcal/h | 17,802 |
| Number of Compressors | pcs | 1 |
| Total Compressor Power | kW | 2,9 |
| Total Power Input | kW | 4,45 |
| Energy Efficiency Ratio (EER) | EER | 4,7 |
| Evaporator Water Flow Δt=5°C | m³/h | 3,6 |
| Cooling Capacity | kW | 17,9 |
| Cooling Capacity | kcal/h | 15,394 |
| Number of Compressors | pcs | 1 |
| Total Compressor Power | kW | 3,7 |
| Total Power Input | kW | 5,25 |
| Energy Efficiency Ratio (EER) | EER | 3,4 |
| Evaporator Water Flow Δt=5°C | m³/h | 3,1 |
| Cooling Capacity | kW | 13,5 |
| Cooling Capacity | kcal/h | 11,610 |
| Number of Compressors | pcs | 1 |
| Total Compressor Power | kW | 3,7 |
| Total Power Input | kW | 5,25 |
| Energy Efficiency Ratio (EER) | EER | 2,6 |
| Evaporator Water Flow Δt=5°C | m³/h | 2,3 |
| Fan Diameter | mm | Ø500 |
| Number of Fans | pcs | 1 |
| Air Flow | m³/h | 8.000 |
| Fan Motor Power | kW | 0,75 |
| Fan Sound Pressure Level (10 m) | dBA | 48 |
| Power Supply | 400 V / 3 PH / 50 Hz. | |
| Nominal Current | A | 13,02 |
| Max. Current | A | 17,72 |
| Pump Motor Power - 3 bar | kW | 0,8 |
| Length (L) | mm | 1350 |
| Width (W) | mm | 750 |
| Height (H) | mm | 1350 |
| Water Inlet Connection | inch | 1" |
| Water Outlet Connection | inch | 1" |
| Weight | Kg | 210 |
| Tank Volume | Lt | 120 |
Specifications are indicative. Final performance is confirmed at design selection.

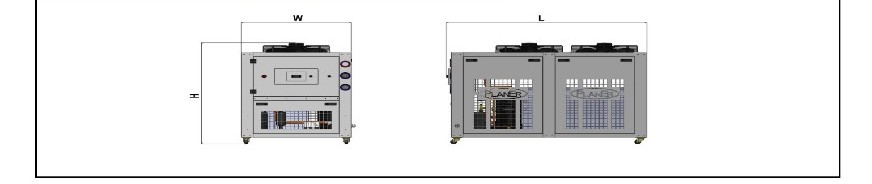

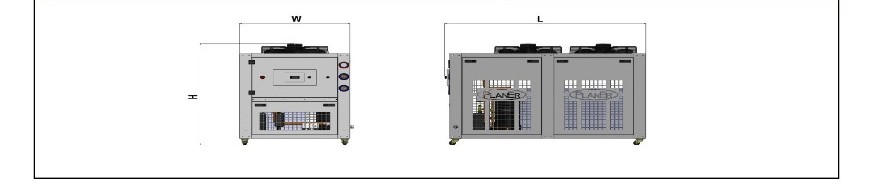

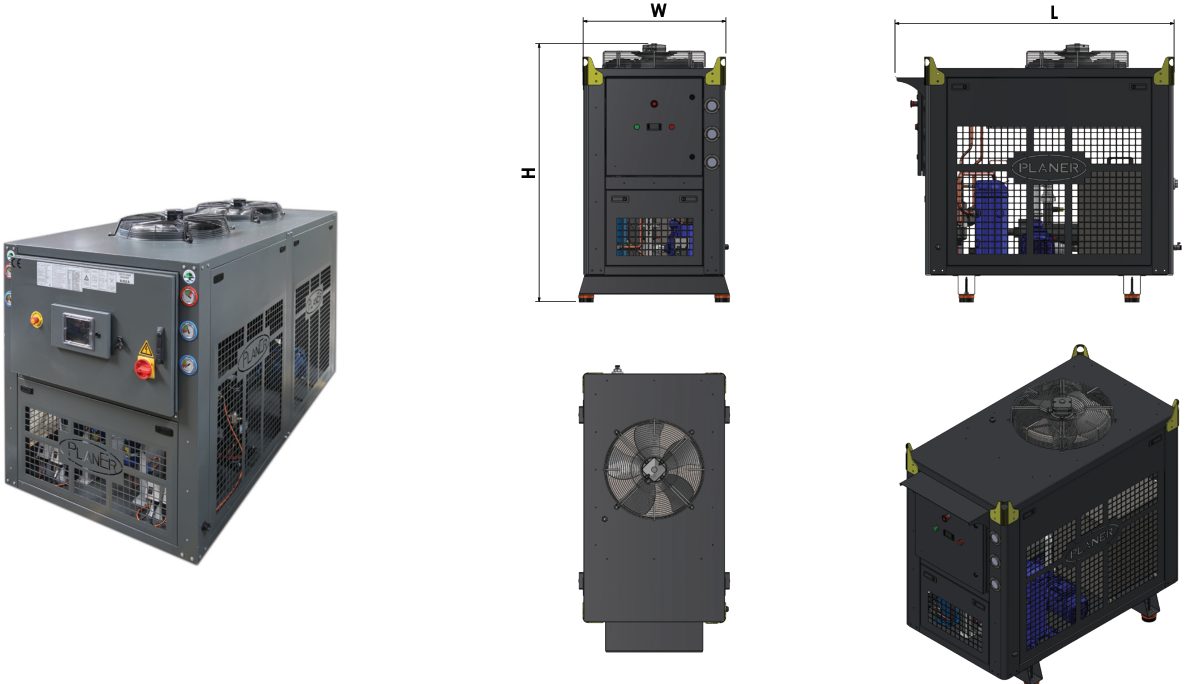

Technical drawing

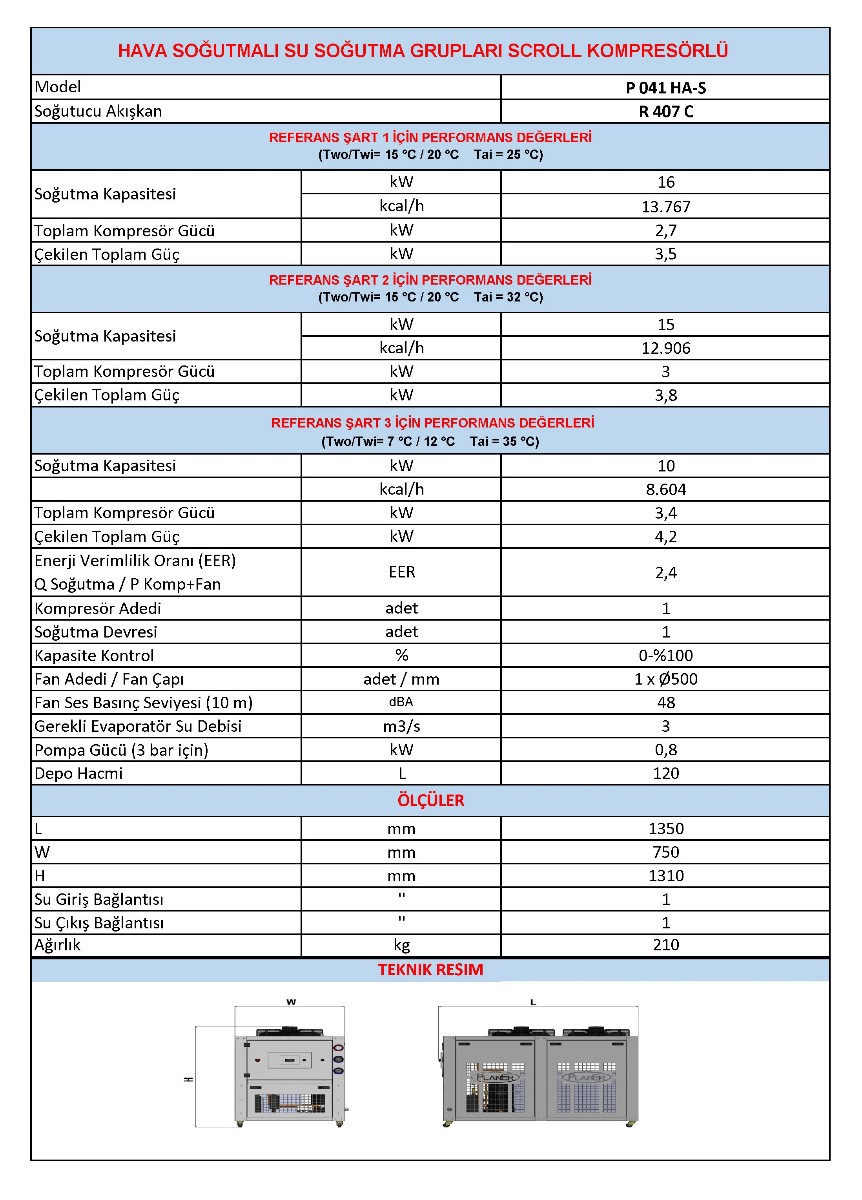

Documents
| Cooling Capacity | kW | 29,3 |
|---|---|---|
| Cooling Capacity | kcal/h | 25,198 |
| Number of Compressors | pcs | 1 |
| Total Compressor Power | kW | 4,3 |
| Total Power Input | kW | 6,9 |
| Energy Efficiency Ratio (EER) | EER | 4,2 |
| Evaporator Water Flow Δt=5°C | m³/h | 5,0 |
| Cooling Capacity | kW | 26,9 |
| Cooling Capacity | kcal/h | 23,134 |
| Number of Compressors | pcs | 1 |
| Total Compressor Power | kW | 5,3 |
| Total Power Input | kW | 7,9 |
| Energy Efficiency Ratio (EER) | EER | 3,4 |
| Evaporator Water Flow Δt=5°C | m³/h | 4,6 |
| Cooling Capacity | kW | 19,4 |
| Cooling Capacity | kcal/h | 16,684 |
| Number of Compressors | pcs | 1 |
| Total Compressor Power | kW | 5,9 |
| Total Power Input | kW | 8,5 |
| Energy Efficiency Ratio (EER) | EER | 2,3 |
| Evaporator Water Flow Δt=5°C | m³/h | 3,3 |
| Fan Diameter | mm | Ø500 |
| Number of Fans | pcs | 2 |
| Air Flow | m³/h | 16.000 |
| Fan Motor Power | kW | 1,5 |
| Fan Sound Pressure Level (10 m) | dBA | 51 |
| Power Supply | 400 V / 3 PH / 50 Hz. | |
| Nominal Current | A | 17,82 |
| Max. Current | A | 23,82 |
| Pump Motor Power - 3 bar | kW | 1,1 |
| Length (L) | mm | 1620 |
| Width (W) | mm | 900 |
| Height (H) | mm | 1310 |
| Water Inlet Connection | inch | 1" |
| Water Outlet Connection | inch | 1" |
| Weight | Kg | 370 |
| Tank Volume | Lt | 200 |
Specifications are indicative. Final performance is confirmed at design selection.

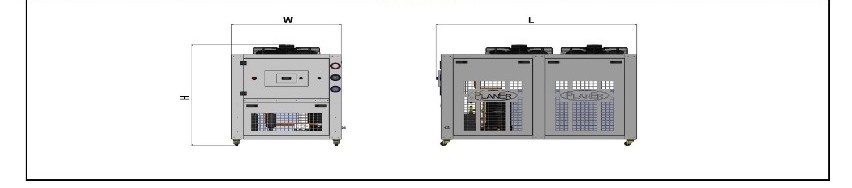

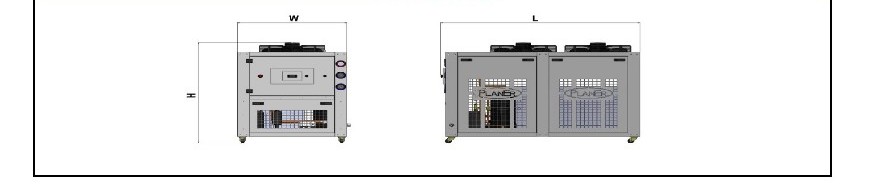

Technical drawing

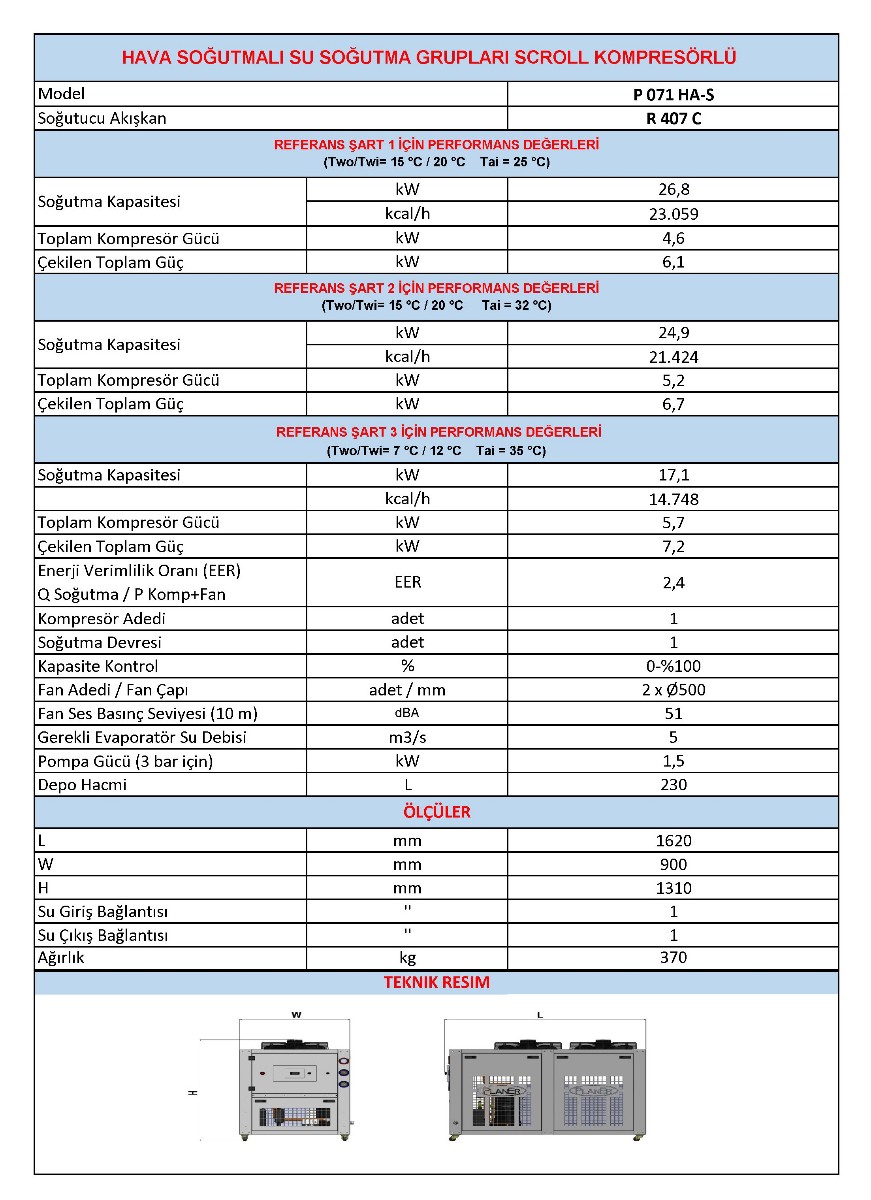

Documents
| Cooling Capacity | kW | 34,6 |
|---|---|---|
| Cooling Capacity | kcal/h | 29,756 |
| Number of Compressors | pcs | 1 |
| Total Compressor Power | kW | 5,2 |
| Total Power Input | kW | 7,8 |
| Energy Efficiency Ratio (EER) | EER | 4,4 |
| Evaporator Water Flow Δt=5°C | m³/h | 6,0 |
| Cooling Capacity | kW | 31,8 |
| Cooling Capacity | kcal/h | 27,348 |
| Number of Compressors | pcs | 1 |
| Total Compressor Power | kW | 6,3 |
| Total Power Input | kW | 8,9 |
| Energy Efficiency Ratio (EER) | EER | 3,6 |
| Evaporator Water Flow Δt=5°C | m³/h | 5,5 |
| Cooling Capacity | kW | 22,9 |
| Cooling Capacity | kcal/h | 19,694 |
| Number of Compressors | pcs | 1 |
| Total Compressor Power | kW | 6,9 |
| Total Power Input | kW | 9,5 |
| Energy Efficiency Ratio (EER) | EER | 2,4 |
| Evaporator Water Flow Δt=5°C | m³/h | 3,9 |
| Fan Diameter | mm | Ø500 |
| Number of Fans | pcs | 2 |
| Air Flow | m³/h | 16.000 |
| Fan Motor Power | kW | 1,5 |
| Fan Sound Pressure Level (10 m) | dBA | 51 |
| Power Supply | 400 V / 3 PH / 50 Hz. | |
| Nominal Current | A | 21,28 |
| Max. Current | A | 28,48 |
| Pump Motor Power - 3 bar | kW | 1,1 |
| Length (L) | mm | 1620 |
| Width (W) | mm | 900 |
| Height (H) | mm | 1310 |
| Water Inlet Connection | inch | 1" |
| Water Outlet Connection | inch | 1" |
| Weight | Kg | 420 |
| Tank Volume | Lt | 200 |
Specifications are indicative. Final performance is confirmed at design selection.

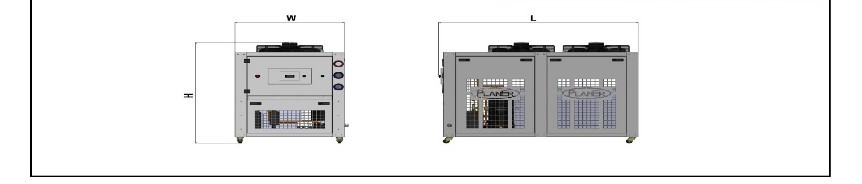

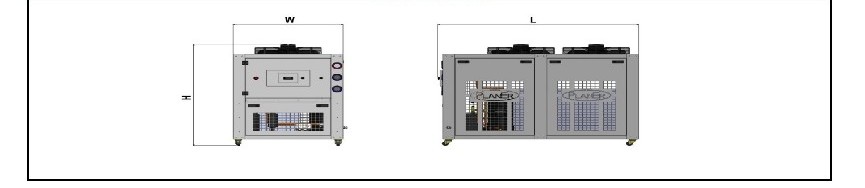

Technical drawing

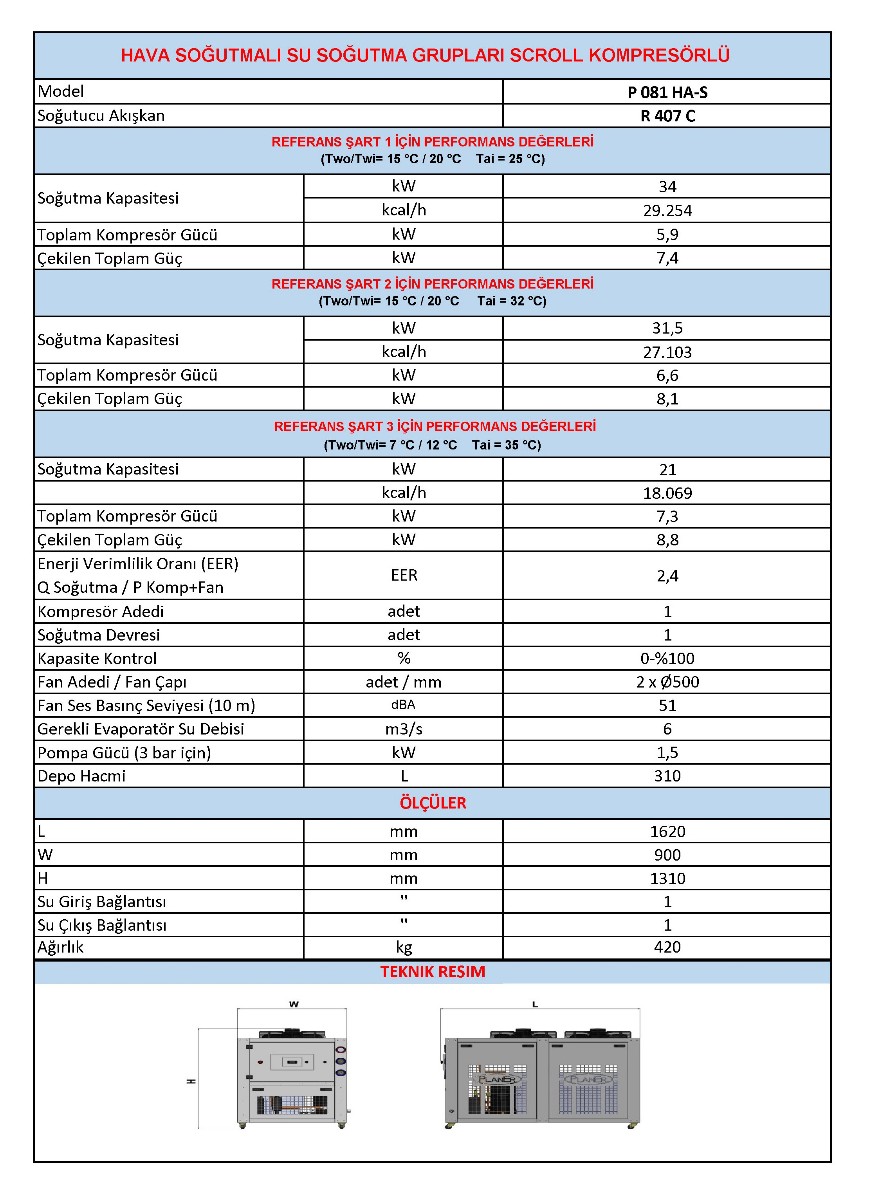

Documents
| Cooling Capacity | kW | 39,3 |
|---|---|---|
| Cooling Capacity | kcal/h | 33,798 |
| Number of Compressors | pcs | 1 |
| Total Compressor Power | kW | 5,7 |
| Total Power Input | kW | 9,45 |
| Energy Efficiency Ratio (EER) | EER | 4,2 |
| Evaporator Water Flow Δt=5°C | m³/h | 6,8 |
| Cooling Capacity | kW | 36,0 |
| Cooling Capacity | kcal/h | 30,960 |
| Number of Compressors | pcs | 1 |
| Total Compressor Power | kW | 7 |
| Total Power Input | kW | 10,75 |
| Energy Efficiency Ratio (EER) | EER | 3,3 |
| Evaporator Water Flow Δt=5°C | m³/h | 6,2 |
| Cooling Capacity | kW | 26,0 |
| Cooling Capacity | kcal/h | 22,360 |
| Number of Compressors | pcs | 1 |
| Total Compressor Power | kW | 7,7 |
| Total Power Input | kW | 11,45 |
| Energy Efficiency Ratio (EER) | EER | 2,3 |
| Evaporator Water Flow Δt=5°C | m³/h | 4,5 |
| Fan Diameter | mm | Ø500 |
| Number of Fans | pcs | 3 |
| Air Flow | m³/h | 24.000 |
| Fan Motor Power | kW | 2,25 |
| Fan Sound Pressure Level (10 m) | dBA | 53 |
| Power Supply | 400 V / 3 PH / 50 Hz. | |
| Nominal Current | A | 31,2 |
| Max. Current | A | 37 |
| Pump Motor Power - 3 bar | kW | 1,5 |
| Length (L) | mm | 2450 |
| Width (W) | mm | 1100 |
| Height (H) | mm | 1465 |
| Water Inlet Connection | inch | 1 1/2" |
| Water Outlet Connection | inch | 1 1/2" |
| Weight | Kg | 500 |
| Tank Volume | Lt | 400 |
Specifications are indicative. Final performance is confirmed at design selection.

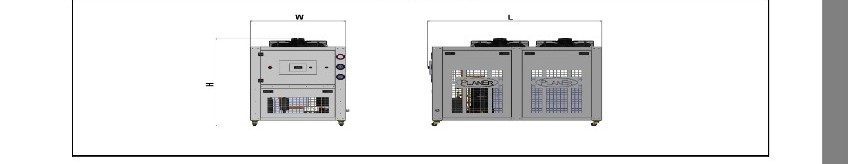

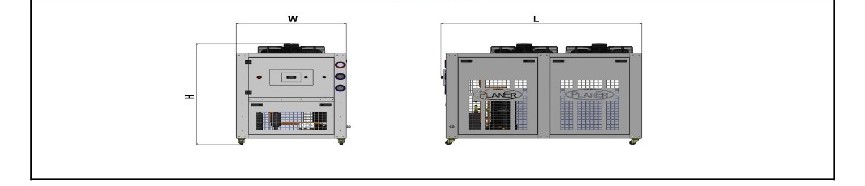

Technical drawing
Documents
| Cooling Capacity | kW | 44,5 |
|---|---|---|
| Cooling Capacity | kcal/h | 38,270 |
| Number of Compressors | pcs | 1 |
| Total Compressor Power | kW | 6,6 |
| Total Power Input | kW | 10,35 |
| Energy Efficiency Ratio (EER) | EER | 4,3 |
| Evaporator Water Flow Δt=5°C | m³/h | 7,7 |
| Cooling Capacity | kW | 40,8 |
| Cooling Capacity | kcal/h | 35,088 |
| Number of Compressors | pcs | 1 |
| Total Compressor Power | kW | 8 |
| Total Power Input | kW | 11,75 |
| Energy Efficiency Ratio (EER) | EER | 3,5 |
| Evaporator Water Flow Δt=5°C | m³/h | 7,0 |
| Cooling Capacity | kW | 29,5 |
| Cooling Capacity | kcal/h | 25,370 |
| Number of Compressors | pcs | 1 |
| Total Compressor Power | kW | 8,7 |
| Total Power Input | kW | 12,45 |
| Energy Efficiency Ratio (EER) | EER | 2,4 |
| Evaporator Water Flow Δt=5°C | m³/h | 5,1 |
| Fan Diameter | mm | Ø500 |
| Number of Fans | pcs | 3 |
| Air Flow | m³/h | 24.000 |
| Fan Motor Power | kW | 2,25 |
| Fan Sound Pressure Level (10 m) | dBA | 53 |
| Power Supply | 400 V / 3 PH / 50 Hz. | |
| Nominal Current | A | 34,9 |
| Max. Current | A | 44 |
| Pump Motor Power - 3 bar | kW | 1,5 |
| Length (L) | mm | 2450 |
| Width (W) | mm | 1100 |
| Height (H) | mm | 1465 |
| Water Inlet Connection | inch | 1 1/2" |
| Water Outlet Connection | inch | 1 1/2" |
| Weight | Kg | 550 |
| Tank Volume | Lt | 400 |
Specifications are indicative. Final performance is confirmed at design selection.

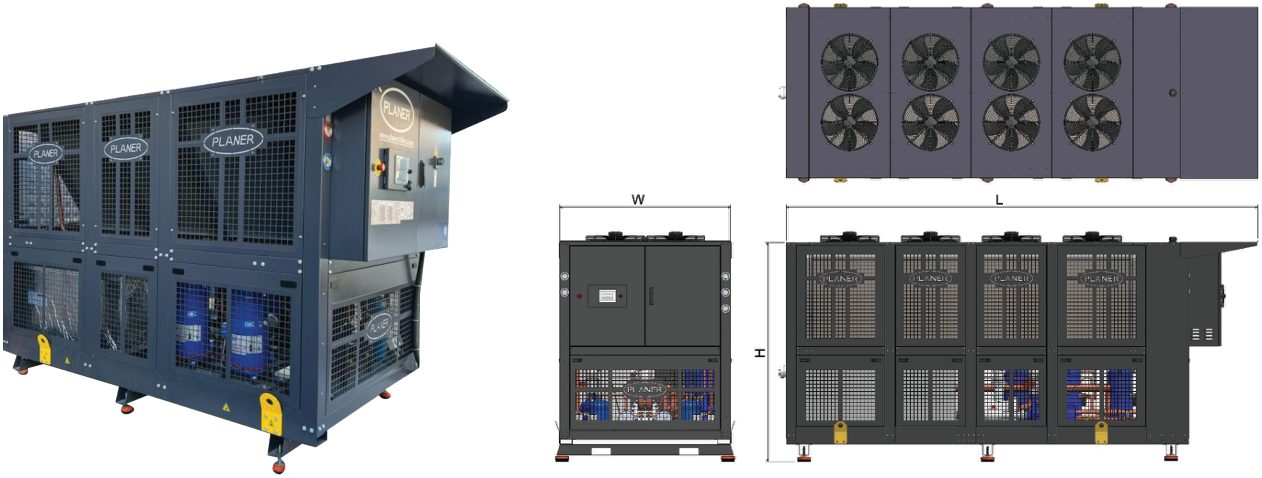

Technical drawing
Documents
| Cooling Capacity | kW | 51,0 |
|---|---|---|
| Cooling Capacity | kcal/h | 43,860 |
| Number of Compressors | pcs | 1 |
| Total Compressor Power | kW | 7,5 |
| Total Power Input | kW | 11,25 |
| Energy Efficiency Ratio (EER) | EER | 4,5 |
| Evaporator Water Flow Δt=5°C | m³/h | 8,8 |
| Cooling Capacity | kW | 46,9 |
| Cooling Capacity | kcal/h | 40,334 |
| Number of Compressors | pcs | 1 |
| Total Compressor Power | kW | 8,1 |
| Total Power Input | kW | 11,85 |
| Energy Efficiency Ratio (EER) | EER | 4,0 |
| Evaporator Water Flow Δt=5°C | m³/h | 8,1 |
| Cooling Capacity | kW | 34,0 |
| Cooling Capacity | kcal/h | 29,240 |
| Number of Compressors | pcs | 1 |
| Total Compressor Power | kW | 9,9 |
| Total Power Input | kW | 13,65 |
| Energy Efficiency Ratio (EER) | EER | 2,5 |
| Evaporator Water Flow Δt=5°C | m³/h | 5,8 |
| Fan Diameter | mm | Ø500 |
| Number of Fans | pcs | 3 |
| Air Flow | m³/h | 24.000 |
| Fan Motor Power | kW | 2,25 |
| Fan Sound Pressure Level (10 m) | dBA | 53 |
| Power Supply | 400 V / 3 PH / 50 Hz. | |
| Nominal Current | A | 37 |
| Max. Current | A | 48 |
| Pump Motor Power - 3 bar | kW | 1,5 |
| Length (L) | mm | 2450 |
| Width (W) | mm | 1100 |
| Height (H) | mm | 1465 |
| Water Inlet Connection | inch | 1 1/2" |
| Water Outlet Connection | inch | 1 1/2" |
| Weight | Kg | 550 |
| Tank Volume | Lt | 400 |
Specifications are indicative. Final performance is confirmed at design selection.
Technical drawing
Documents
| Cooling Capacity | kW | 57,3 |
|---|---|---|
| Cooling Capacity | kcal/h | 49,278 |
| Number of Compressors | pcs | 1 |
| Total Compressor Power | kW | 8,5 |
| Total Power Input | kW | 12,95 |
| Energy Efficiency Ratio (EER) | EER | 4,4 |
| Evaporator Water Flow Δt=5°C | m³/h | 9,9 |
| Cooling Capacity | kW | 52,4 |
| Cooling Capacity | kcal/h | 45,064 |
| Number of Compressors | pcs | 1 |
| Total Compressor Power | kW | 10,2 |
| Total Power Input | kW | 14,65 |
| Energy Efficiency Ratio (EER) | EER | 3,6 |
| Evaporator Water Flow Δt=5°C | m³/h | 9,0 |
| Cooling Capacity | kW | 38,0 |
| Cooling Capacity | kcal/h | 32,680 |
| Number of Compressors | pcs | 1 |
| Total Compressor Power | kW | 11,1 |
| Total Power Input | kW | 15,55 |
| Energy Efficiency Ratio (EER) | EER | 2,4 |
| Evaporator Water Flow Δt=5°C | m³/h | 6,5 |
| Fan Diameter | mm | Ø500 |
| Number of Fans | pcs | 3 |
| Air Flow | m³/h | 24.000 |
| Fan Motor Power | kW | 2,25 |
| Fan Sound Pressure Level (10 m) | dBA | 54 |
| Power Supply | 400 V / 3 PH / 50 Hz. | |
| Nominal Current | A | 45,68 |
| Max. Current | A | 51,68 |
| Pump Motor Power - 3 bar | kW | 2,2 |
| Length (L) | mm | 2450 |
| Width (W) | mm | 1100 |
| Height (H) | mm | 1465 |
| Water Inlet Connection | inch | 1 1/2" |
| Water Outlet Connection | inch | 1 1/2" |
| Weight | Kg | 675 |
| Tank Volume | Lt | 400 |
Specifications are indicative. Final performance is confirmed at design selection.
Technical drawing
Documents
| Cooling Capacity | kW | 77,0 |
|---|---|---|
| Cooling Capacity | kcal/h | 66,220 |
| Number of Compressors | pcs | 1 |
| Total Compressor Power | kW | 11,6 |
| Total Power Input | kW | 16,8 |
| Energy Efficiency Ratio (EER) | EER | 4,6 |
| Evaporator Water Flow Δt=5°C | m³/h | 13,2 |
| Cooling Capacity | kW | 70,6 |
| Cooling Capacity | kcal/h | 60,716 |
| Number of Compressors | pcs | 1 |
| Total Compressor Power | kW | 14,1 |
| Total Power Input | kW | 19,3 |
| Energy Efficiency Ratio (EER) | EER | 3,7 |
| Evaporator Water Flow Δt=5°C | m³/h | 12,1 |
| Cooling Capacity | kW | 51,3 |
| Cooling Capacity | kcal/h | 44,118 |
| Number of Compressors | pcs | 1 |
| Total Compressor Power | kW | 15,3 |
| Total Power Input | kW | 20,5 |
| Energy Efficiency Ratio (EER) | EER | 2,5 |
| Evaporator Water Flow Δt=5°C | m³/h | 8,8 |
| Fan Diameter | mm | Ø500 |
| Number of Fans | pcs | 4 |
| Air Flow | m³/h | 32.000 |
| Fan Motor Power | kW | 3 |
| Fan Sound Pressure Level (10 m) | dBA | 54 |
| Power Supply | 400 V / 3 PH / 50 Hz. | |
| Nominal Current | A | 52,48 |
| Max. Current | A | 66,48 |
| Pump Motor Power - 3 bar | kW | 2,2 |
| Length (L) | mm | 3020 |
| Width (W) | mm | 1100 |
| Height (H) | mm | 1550 |
| Water Inlet Connection | inch | 2" |
| Water Outlet Connection | inch | 2" |
| Weight | Kg | 725 |
| Tank Volume | Lt | 400 |
Specifications are indicative. Final performance is confirmed at design selection.
Technical drawing
Documents
| Cooling Capacity | kW | 94,1 |
|---|---|---|
| Cooling Capacity | kcal/h | 80,926 |
| Number of Compressors | pcs | 1 |
| Total Compressor Power | kW | 14,2 |
| Total Power Input | kW | 20,8 |
| Energy Efficiency Ratio (EER) | EER | 4,5 |
| Evaporator Water Flow Δt=5°C | m³/h | 16,2 |
| Cooling Capacity | kW | 86,3 |
| Cooling Capacity | kcal/h | 74,218 |
| Number of Compressors | pcs | 1 |
| Total Compressor Power | kW | 16,9 |
| Total Power Input | kW | 23,5 |
| Energy Efficiency Ratio (EER) | EER | 3,7 |
| Evaporator Water Flow Δt=5°C | m³/h | 14,8 |
| Cooling Capacity | kW | 62,9 |
| Cooling Capacity | kcal/h | 54,094 |
| Number of Compressors | pcs | 1 |
| Total Compressor Power | kW | 18,2 |
| Total Power Input | kW | 24,8 |
| Energy Efficiency Ratio (EER) | EER | 2,5 |
| Evaporator Water Flow Δt=5°C | m³/h | 10,8 |
| Fan Diameter | mm | Ø500 |
| Number of Fans | pcs | 6 |
| Air Flow | m³/h | 48.000 |
| Fan Motor Power | kW | 3,6 |
| Fan Sound Pressure Level (10 m) | dBA | 43 |
| Power Supply | 400 V / 3 PH / 50 Hz. | |
| Nominal Current | A | 65,48 |
| Max. Current | A | 85,48 |
| Pump Motor Power - 3 bar | kW | 3 |
| Length (L) | mm | 3020 |
| Width (W) | mm | 1100 |
| Height (H) | mm | 1550 |
| Water Inlet Connection | inch | 2" |
| Water Outlet Connection | inch | 2" |
| Weight | Kg | 825 |
| Tank Volume | Lt | 500 |
Specifications are indicative. Final performance is confirmed at design selection.
Technical drawing
Documents
| Cooling Capacity | kW | 119,0 |
|---|---|---|
| Cooling Capacity | kcal/h | 102,340 |
| Number of Compressors | pcs | 1 |
| Total Compressor Power | kW | 17,9 |
| Total Power Input | kW | 25,5 |
| Energy Efficiency Ratio (EER) | EER | 4,7 |
| Evaporator Water Flow Δt=5°C | m³/h | 20,5 |
| Cooling Capacity | kW | 108,4 |
| Cooling Capacity | kcal/h | 93,224 |
| Number of Compressors | pcs | 1 |
| Total Compressor Power | kW | 21,5 |
| Total Power Input | kW | 29,1 |
| Energy Efficiency Ratio (EER) | EER | 3,7 |
| Evaporator Water Flow Δt=5°C | m³/h | 18,6 |
| Cooling Capacity | kW | 78,6 |
| Cooling Capacity | kcal/h | 67,596 |
| Number of Compressors | pcs | 1 |
| Total Compressor Power | kW | 23,2 |
| Total Power Input | kW | 30,8 |
| Energy Efficiency Ratio (EER) | EER | 2,6 |
| Evaporator Water Flow Δt=5°C | m³/h | 13,5 |
| Fan Diameter | mm | Ø500 |
| Number of Fans | pcs | 6 |
| Air Flow | m³/h | 48.000 |
| Fan Motor Power | kW | 3,6 |
| Fan Sound Pressure Level (10 m) | dBA | 43 |
| Power Supply | 400 V / 3 PH / 50 Hz. | |
| Nominal Current | A | 74,4 |
| Max. Current | A | 97,4 |
| Pump Motor Power - 3 bar | kW | 4 |
| Length (L) | mm | 3020 |
| Width (W) | mm | 1100 |
| Height (H) | mm | 1550 |
| Water Inlet Connection | inch | 2" |
| Water Outlet Connection | inch | 2" |
| Weight | Kg | 875 |
| Tank Volume | Lt | 500 |
Specifications are indicative. Final performance is confirmed at design selection.
Technical drawing
Documents
| Cooling Capacity | kW | 152,2 |
|---|---|---|
| Cooling Capacity | kcal/h | 130,892 |
| Number of Compressors | pcs | 1 |
| Total Compressor Power | kW | 22,5 |
| Total Power Input | kW | 32,8 |
| Energy Efficiency Ratio (EER) | EER | 4,6 |
| Evaporator Water Flow Δt=5°C | m³/h | 26,2 |
| Cooling Capacity | kW | 140,0 |
| Cooling Capacity | kcal/h | 120,400 |
| Number of Compressors | pcs | 1 |
| Total Compressor Power | kW | 27,2 |
| Total Power Input | kW | 37,5 |
| Energy Efficiency Ratio (EER) | EER | 3,7 |
| Evaporator Water Flow Δt=5°C | m³/h | 24,1 |
| Cooling Capacity | kW | 101,0 |
| Cooling Capacity | kcal/h | 86,860 |
| Number of Compressors | pcs | 1 |
| Total Compressor Power | kW | 29,1 |
| Total Power Input | kW | 39,4 |
| Energy Efficiency Ratio (EER) | EER | 2,6 |
| Evaporator Water Flow Δt=5°C | m³/h | 17,4 |
| Fan Diameter | mm | Ø500 |
| Number of Fans | pcs | 8 |
| Air Flow | m³/h | 64.000 |
| Fan Motor Power | kW | 4,8 |
| Fan Sound Pressure Level (10 m) | dBA | 43 |
| Power Supply | 400 V / 3 PH / 50 Hz. | |
| Nominal Current | A | 112,6 |
| Max. Current | A | 143,6 |
| Pump Motor Power - 3 bar | kW | 5,5 |
| Length (L) | mm | 3970 |
| Width (W) | mm | 1680 |
| Height (H) | mm | 2150 |
| Water Inlet Connection | inch | 3" |
| Water Outlet Connection | inch | 3" |
| Weight | Kg | 1100 |
| Tank Volume | Lt | 500 |
Specifications are indicative. Final performance is confirmed at design selection.
Technical drawing
Documents
| Cooling Capacity | kW | 188,0 |
|---|---|---|
| Cooling Capacity | kcal/h | 161,680 |
| Number of Compressors | pcs | 1 |
| Total Compressor Power | kW | 27,9 |
| Total Power Input | kW | 38,2 |
| Energy Efficiency Ratio (EER) | EER | 4,9 |
| Evaporator Water Flow Δt=5°C | m³/h | 32,3 |
| Cooling Capacity | kW | 171,8 |
| Cooling Capacity | kcal/h | 147,748 |
| Number of Compressors | pcs | 1 |
| Total Compressor Power | kW | 33,7 |
| Total Power Input | kW | 44 |
| Energy Efficiency Ratio (EER) | EER | 3,9 |
| Evaporator Water Flow Δt=5°C | m³/h | 29,5 |
| Cooling Capacity | kW | 125,3 |
| Cooling Capacity | kcal/h | 107,758 |
| Number of Compressors | pcs | 1 |
| Total Compressor Power | kW | 36,4 |
| Total Power Input | kW | 46,7 |
| Energy Efficiency Ratio (EER) | EER | 2,7 |
| Evaporator Water Flow Δt=5°C | m³/h | 21,6 |
| Fan Diameter | mm | Ø500 |
| Number of Fans | pcs | 8 |
| Air Flow | m³/h | 64.000 |
| Fan Motor Power | kW | 4,8 |
| Fan Sound Pressure Level (10 m) | dBA | 43 |
| Power Supply | 400 V / 3 PH / 50 Hz. | |
| Nominal Current | A | 120,6 |
| Max. Current | A | 154,6 |
| Pump Motor Power - 3 bar | kW | 5,5 |
| Length (L) | mm | 3970 |
| Width (W) | mm | 1680 |
| Height (H) | mm | 2150 |
| Water Inlet Connection | inch | 3" |
| Water Outlet Connection | inch | 3" |
| Weight | Kg | 1250 |
| Tank Volume | Lt | 500 |
Specifications are indicative. Final performance is confirmed at design selection.
Technical drawing
Documents
| Cooling Capacity | kW | 58,6 |
|---|---|---|
| Cooling Capacity | kcal/h | 50,396 |
| Number of Compressors | pcs | 2 |
| Total Compressor Power | kW | 8,6 |
| Total Power Input | kW | 12,35 |
| Energy Efficiency Ratio (EER) | EER | 4,7 |
| Evaporator Water Flow Δt=5°C | m³/h | 10,1 |
| Cooling Capacity | kW | 53,8 |
| Cooling Capacity | kcal/h | 46,268 |
| Number of Compressors | pcs | 2 |
| Total Compressor Power | kW | 10,6 |
| Total Power Input | kW | 14,35 |
| Energy Efficiency Ratio (EER) | EER | 3,7 |
| Evaporator Water Flow Δt=5°C | m³/h | 9,3 |
| Cooling Capacity | kW | 38,8 |
| Cooling Capacity | kcal/h | 33,368 |
| Number of Compressors | pcs | 2 |
| Total Compressor Power | kW | 11,8 |
| Total Power Input | kW | 15,55 |
| Energy Efficiency Ratio (EER) | EER | 2,5 |
| Evaporator Water Flow Δt=5°C | m³/h | 6,7 |
| Fan Diameter | mm | Ø500 |
| Number of Fans | pcs | 3 |
| Air Flow | m³/h | 24.000 |
| Fan Motor Power | kW | 2,25 |
| Fan Sound Pressure Level (10 m) | dBA | 51 |
| Power Supply | 400 V / 3 PH / 50 Hz. | |
| Nominal Current | A | 34,28 |
| Max. Current | A | 46,28 |
| Pump Motor Power - 3 bar | kW | 1,5 |
| Length (L) | mm | 2450 |
| Width (W) | mm | 1100 |
| Height (H) | mm | 1465 |
| Water Inlet Connection | inch | 2" |
| Water Outlet Connection | inch | 2" |
| Weight | Kg | 740 |
| Tank Volume | Lt | 320 |
Specifications are indicative. Final performance is confirmed at design selection.
Technical drawing
Documents
| Cooling Capacity | kW | 69,2 |
|---|---|---|
| Cooling Capacity | kcal/h | 59,512 |
| Number of Compressors | pcs | 2 |
| Total Compressor Power | kW | 10,4 |
| Total Power Input | kW | 14,85 |
| Energy Efficiency Ratio (EER) | EER | 4,7 |
| Evaporator Water Flow Δt=5°C | m³/h | 11,9 |
| Cooling Capacity | kW | 63,6 |
| Cooling Capacity | kcal/h | 54,696 |
| Number of Compressors | pcs | 2 |
| Total Compressor Power | kW | 12,6 |
| Total Power Input | kW | 17,05 |
| Energy Efficiency Ratio (EER) | EER | 3,7 |
| Evaporator Water Flow Δt=5°C | m³/h | 10,9 |
| Cooling Capacity | kW | 45,8 |
| Cooling Capacity | kcal/h | 39,388 |
| Number of Compressors | pcs | 2 |
| Total Compressor Power | kW | 13,8 |
| Total Power Input | kW | 18,25 |
| Energy Efficiency Ratio (EER) | EER | 2,5 |
| Evaporator Water Flow Δt=5°C | m³/h | 7,9 |
| Fan Diameter | mm | Ø500 |
| Number of Fans | pcs | 3 |
| Air Flow | m³/h | 24.000 |
| Fan Motor Power | kW | 2,25 |
| Fan Sound Pressure Level (10 m) | dBA | 51 |
| Power Supply | 400 V / 3 PH / 50 Hz. | |
| Nominal Current | A | 39,28 |
| Max. Current | A | 53,68 |
| Pump Motor Power - 3 bar | kW | 2,2 |
| Length (L) | mm | 2450 |
| Width (W) | mm | 1100 |
| Height (H) | mm | 1465 |
| Water Inlet Connection | inch | 2" |
| Water Outlet Connection | inch | 2" |
| Weight | Kg | 840 |
| Tank Volume | Lt | 320 |
Specifications are indicative. Final performance is confirmed at design selection.
Technical drawing
Documents
| Cooling Capacity | kW | 78,6 |
|---|---|---|
| Cooling Capacity | kcal/h | 67,596 |
| Number of Compressors | pcs | 2 |
| Total Compressor Power | kW | 11,4 |
| Total Power Input | kW | 16,6 |
| Energy Efficiency Ratio (EER) | EER | 4,7 |
| Evaporator Water Flow Δt=5°C | m³/h | 13,5 |
| Cooling Capacity | kW | 72,0 |
| Cooling Capacity | kcal/h | 61,920 |
| Number of Compressors | pcs | 2 |
| Total Compressor Power | kW | 14 |
| Total Power Input | kW | 19,2 |
| Energy Efficiency Ratio (EER) | EER | 3,8 |
| Evaporator Water Flow Δt=5°C | m³/h | 12,4 |
| Cooling Capacity | kW | 52,0 |
| Cooling Capacity | kcal/h | 44,720 |
| Number of Compressors | pcs | 2 |
| Total Compressor Power | kW | 15,4 |
| Total Power Input | kW | 20,6 |
| Energy Efficiency Ratio (EER) | EER | 2,5 |
| Evaporator Water Flow Δt=5°C | m³/h | 8,9 |
| Fan Diameter | mm | Ø500 |
| Number of Fans | pcs | 4 |
| Air Flow | m³/h | 32.000 |
| Fan Motor Power | kW | 3 |
| Fan Sound Pressure Level (10 m) | dBA | 53 |
| Power Supply | 400 V / 3 PH / 50 Hz. | |
| Nominal Current | A | 56,8 |
| Max. Current | A | 68,4 |
| Pump Motor Power - 3 bar | kW | 2,2 |
| Length (L) | mm | 3020 |
| Width (W) | mm | 1100 |
| Height (H) | mm | 1550 |
| Water Inlet Connection | inch | 2" |
| Water Outlet Connection | inch | 2" |
| Weight | Kg | 1000 |
| Tank Volume | Lt | 320 |
Specifications are indicative. Final performance is confirmed at design selection.
Technical drawing
Documents
| Cooling Capacity | kW | 89,0 |
|---|---|---|
| Cooling Capacity | kcal/h | 76,540 |
| Number of Compressors | pcs | 2 |
| Total Compressor Power | kW | 13,2 |
| Total Power Input | kW | 19,2 |
| Energy Efficiency Ratio (EER) | EER | 4,6 |
| Evaporator Water Flow Δt=5°C | m³/h | 15,3 |
| Cooling Capacity | kW | 81,6 |
| Cooling Capacity | kcal/h | 70,176 |
| Number of Compressors | pcs | 2 |
| Total Compressor Power | kW | 16 |
| Total Power Input | kW | 22 |
| Energy Efficiency Ratio (EER) | EER | 3,7 |
| Evaporator Water Flow Δt=5°C | m³/h | 14,0 |
| Cooling Capacity | kW | 59,0 |
| Cooling Capacity | kcal/h | 50,740 |
| Number of Compressors | pcs | 2 |
| Total Compressor Power | kW | 17,4 |
| Total Power Input | kW | 23,4 |
| Energy Efficiency Ratio (EER) | EER | 2,5 |
| Evaporator Water Flow Δt=5°C | m³/h | 10,1 |
| Fan Diameter | mm | Ø500 |
| Number of Fans | pcs | 4 |
| Air Flow | m³/h | 32.000 |
| Fan Motor Power | kW | 3 |
| Fan Sound Pressure Level (10 m) | dBA | 53 |
| Power Supply | 400 V / 3 PH / 50 Hz. | |
| Nominal Current | A | 66,6 |
| Max. Current | A | 84,8 |
| Pump Motor Power - 3 bar | kW | 3 |
| Length (L) | mm | 3020 |
| Width (W) | mm | 1100 |
| Height (H) | mm | 1550 |
| Water Inlet Connection | inch | 2" |
| Water Outlet Connection | inch | 2" |
| Weight | Kg | 1100 |
| Tank Volume | Lt | 400 |
Specifications are indicative. Final performance is confirmed at design selection.
Technical drawing
Documents
| Cooling Capacity | kW | 102,0 |
|---|---|---|
| Cooling Capacity | kcal/h | 87,720 |
| Number of Compressors | pcs | 2 |
| Total Compressor Power | kW | 15 |
| Total Power Input | kW | 21 |
| Energy Efficiency Ratio (EER) | EER | 4,9 |
| Evaporator Water Flow Δt=5°C | m³/h | 17,5 |
| Cooling Capacity | kW | 93,8 |
| Cooling Capacity | kcal/h | 80,668 |
| Number of Compressors | pcs | 2 |
| Total Compressor Power | kW | 16,2 |
| Total Power Input | kW | 22,2 |
| Energy Efficiency Ratio (EER) | EER | 4,2 |
| Evaporator Water Flow Δt=5°C | m³/h | 16,1 |
| Cooling Capacity | kW | 68,0 |
| Cooling Capacity | kcal/h | 58,480 |
| Number of Compressors | pcs | 2 |
| Total Compressor Power | kW | 19,8 |
| Total Power Input | kW | 25,8 |
| Energy Efficiency Ratio (EER) | EER | 2,6 |
| Evaporator Water Flow Δt=5°C | m³/h | 11,7 |
| Fan Diameter | mm | Ø500 |
| Number of Fans | pcs | 4 |
| Air Flow | m³/h | 32.000 |
| Fan Motor Power | kW | 3 |
| Fan Sound Pressure Level (10 m) | dBA | 53 |
| Power Supply | 400 V / 3 PH / 50 Hz. | |
| Nominal Current | A | 70,8 |
| Max. Current | A | 92,8 |
| Pump Motor Power - 3 bar | kW | 3 |
| Length (L) | mm | 3020 |
| Width (W) | mm | 1100 |
| Height (H) | mm | 1550 |
| Water Inlet Connection | inch | 2 1/2" |
| Water Outlet Connection | inch | 2 1/2" |
| Weight | Kg | 1100 |
| Tank Volume | Lt | 400 |
Specifications are indicative. Final performance is confirmed at design selection.
Technical drawing
Documents
| Cooling Capacity | kW | 114,6 |
|---|---|---|
| Cooling Capacity | kcal/h | 98,556 |
| Number of Compressors | pcs | 2 |
| Total Compressor Power | kW | 17 |
| Total Power Input | kW | 25,5 |
| Energy Efficiency Ratio (EER) | EER | 4,5 |
| Evaporator Water Flow Δt=5°C | m³/h | 19,7 |
| Cooling Capacity | kW | 104,8 |
| Cooling Capacity | kcal/h | 90,128 |
| Number of Compressors | pcs | 2 |
| Total Compressor Power | kW | 20,4 |
| Total Power Input | kW | 28,9 |
| Energy Efficiency Ratio (EER) | EER | 3,6 |
| Evaporator Water Flow Δt=5°C | m³/h | 18,0 |
| Cooling Capacity | kW | 76,0 |
| Cooling Capacity | kcal/h | 65,360 |
| Number of Compressors | pcs | 2 |
| Total Compressor Power | kW | 22,2 |
| Total Power Input | kW | 30,7 |
| Energy Efficiency Ratio (EER) | EER | 2,5 |
| Evaporator Water Flow Δt=5°C | m³/h | 13,1 |
| Fan Diameter | mm | Ø500 |
| Number of Fans | pcs | 6 |
| Air Flow | m³/h | 48.000 |
| Fan Motor Power | kW | 4,5 |
| Fan Sound Pressure Level (10 m) | dBA | 54 |
| Power Supply | 400 V / 3 PH / 50 Hz. | |
| Nominal Current | A | 94 |
| Max. Current | A | 106 |
| Pump Motor Power - 3 bar | kW | 4 |
| Length (L) | mm | 3390 |
| Width (W) | mm | 1680 |
| Height (H) | mm | 2150 |
| Water Inlet Connection | inch | 2 1/2" |
| Water Outlet Connection | inch | 2 1/2" |
| Weight | Kg | 1350 |
| Tank Volume | Lt | 500 |
Specifications are indicative. Final performance is confirmed at design selection.
Technical drawing
Documents
| Cooling Capacity | kW | 154,0 |
|---|---|---|
| Cooling Capacity | kcal/h | 132,440 |
| Number of Compressors | pcs | 2 |
| Total Compressor Power | kW | 23,2 |
| Total Power Input | kW | 31,7 |
| Energy Efficiency Ratio (EER) | EER | 4,9 |
| Evaporator Water Flow Δt=5°C | m³/h | 26,5 |
| Cooling Capacity | kW | 141,2 |
| Cooling Capacity | kcal/h | 121,432 |
| Number of Compressors | pcs | 2 |
| Total Compressor Power | kW | 28,2 |
| Total Power Input | kW | 36,7 |
| Energy Efficiency Ratio (EER) | EER | 3,8 |
| Evaporator Water Flow Δt=5°C | m³/h | 24,3 |
| Cooling Capacity | kW | 102,6 |
| Cooling Capacity | kcal/h | 88,236 |
| Number of Compressors | pcs | 2 |
| Total Compressor Power | kW | 30,6 |
| Total Power Input | kW | 39,1 |
| Energy Efficiency Ratio (EER) | EER | 2,6 |
| Evaporator Water Flow Δt=5°C | m³/h | 17,6 |
| Fan Diameter | mm | Ø500 |
| Number of Fans | pcs | 6 |
| Air Flow | m³/h | 48.000 |
| Fan Motor Power | kW | 4,5 |
| Fan Sound Pressure Level (10 m) | dBA | 54 |
| Power Supply | 400 V / 3 PH / 50 Hz. | |
| Nominal Current | A | 102 |
| Max. Current | A | 130 |
| Pump Motor Power - 3 bar | kW | 4 |
| Length (L) | mm | 3390 |
| Width (W) | mm | 1680 |
| Height (H) | mm | 2150 |
| Water Inlet Connection | inch | 2 1/2" |
| Water Outlet Connection | inch | 2 1/2" |
| Weight | Kg | 1450 |
| Tank Volume | Lt | 500 |
Specifications are indicative. Final performance is confirmed at design selection.
Technical drawing
Documents
| Cooling Capacity | kW | 188,2 |
|---|---|---|
| Cooling Capacity | kcal/h | 161,852 |
| Number of Compressors | pcs | 2 |
| Total Compressor Power | kW | 28,4 |
| Total Power Input | kW | 38,7 |
| Energy Efficiency Ratio (EER) | EER | 4,9 |
| Evaporator Water Flow Δt=5°C | m³/h | 32,4 |
| Cooling Capacity | kW | 172,6 |
| Cooling Capacity | kcal/h | 148,436 |
| Number of Compressors | pcs | 2 |
| Total Compressor Power | kW | 33,8 |
| Total Power Input | kW | 44,1 |
| Energy Efficiency Ratio (EER) | EER | 3,9 |
| Evaporator Water Flow Δt=5°C | m³/h | 29,7 |
| Cooling Capacity | kW | 125,8 |
| Cooling Capacity | kcal/h | 108,188 |
| Number of Compressors | pcs | 2 |
| Total Compressor Power | kW | 36,4 |
| Total Power Input | kW | 46,7 |
| Energy Efficiency Ratio (EER) | EER | 2,7 |
| Evaporator Water Flow Δt=5°C | m³/h | 21,6 |
| Fan Diameter | mm | Ø500 |
| Number of Fans | pcs | 8 |
| Air Flow | m³/h | 64.000 |
| Fan Motor Power | kW | 4,8 |
| Fan Sound Pressure Level (10 m) | dBA | 43 |
| Power Supply | 400 V / 3 PH / 50 Hz. | |
| Nominal Current | A | 138,4 |
| Max. Current | A | 178,4 |
| Pump Motor Power - 3 bar | kW | 5,5 |
| Length (L) | mm | 3970 |
| Width (W) | mm | 1680 |
| Height (H) | mm | 2150 |
| Water Inlet Connection | inch | 3" |
| Water Outlet Connection | inch | 3" |
| Weight | Kg | 1650 |
| Tank Volume | Lt | 800 |
Specifications are indicative. Final performance is confirmed at design selection.
Technical drawing
Documents
| Cooling Capacity | kW | 238,0 |
|---|---|---|
| Cooling Capacity | kcal/h | 204,680 |
| Number of Compressors | pcs | 2 |
| Total Compressor Power | kW | 35,8 |
| Total Power Input | kW | 47,3 |
| Energy Efficiency Ratio (EER) | EER | 5,0 |
| Evaporator Water Flow Δt=5°C | m³/h | 40,9 |
| Cooling Capacity | kW | 216,8 |
| Cooling Capacity | kcal/h | 186,448 |
| Number of Compressors | pcs | 2 |
| Total Compressor Power | kW | 43 |
| Total Power Input | kW | 54,5 |
| Energy Efficiency Ratio (EER) | EER | 4,0 |
| Evaporator Water Flow Δt=5°C | m³/h | 37,3 |
| Cooling Capacity | kW | 157,2 |
| Cooling Capacity | kcal/h | 135,192 |
| Number of Compressors | pcs | 2 |
| Total Compressor Power | kW | 46,4 |
| Total Power Input | kW | 57,9 |
| Energy Efficiency Ratio (EER) | EER | 2,7 |
| Evaporator Water Flow Δt=5°C | m³/h | 27,0 |
| Fan Diameter | mm | Ø500 |
| Number of Fans | pcs | 10 |
| Air Flow | m³/h | 80.000 |
| Fan Motor Power | kW | 6 |
| Fan Sound Pressure Level (10 m) | dBA | 43 |
| Power Supply | 400 V / 3 PH / 50 Hz. | |
| Nominal Current | A | 152,4 |
| Max. Current | A | 198,4 |
| Pump Motor Power - 3 bar | kW | 5,5 |
| Length (L) | mm | 3970 |
| Width (W) | mm | 1680 |
| Height (H) | mm | 2150 |
| Water Inlet Connection | inch | 3" |
| Water Outlet Connection | inch | 3" |
| Weight | Kg | 1750 |
| Tank Volume | Lt | 800 |
Specifications are indicative. Final performance is confirmed at design selection.
Technical drawing
Documents
| Cooling Capacity | kW | 304,4 |
|---|---|---|
| Cooling Capacity | kcal/h | 261,784 |
| Number of Compressors | pcs | 2 |
| Total Compressor Power | kW | 45 |
| Total Power Input | kW | 58,1 |
| Energy Efficiency Ratio (EER) | EER | 5,2 |
| Evaporator Water Flow Δt=5°C | m³/h | 52,4 |
| Cooling Capacity | kW | 280,0 |
| Cooling Capacity | kcal/h | 240,800 |
| Number of Compressors | pcs | 2 |
| Total Compressor Power | kW | 54,4 |
| Total Power Input | kW | 67,5 |
| Energy Efficiency Ratio (EER) | EER | 4,1 |
| Evaporator Water Flow Δt=5°C | m³/h | 48,2 |
| Cooling Capacity | kW | 202,0 |
| Cooling Capacity | kcal/h | 173,720 |
| Number of Compressors | pcs | 2 |
| Total Compressor Power | kW | 58,2 |
| Total Power Input | kW | 71,3 |
| Energy Efficiency Ratio (EER) | EER | 2,8 |
| Evaporator Water Flow Δt=5°C | m³/h | 34,7 |
| Fan Diameter | mm | Ø800 |
| Number of Fans | pcs | 4 |
| Air Flow | m³/h | 88.000 |
| Fan Motor Power | kW | 5,6 |
| Fan Sound Pressure Level (10 m) | dBA | 43 |
| Power Supply | 400 V / 3 PH / 50 Hz. | |
| Nominal Current | A | 187,28 |
| Max. Current | A | 249,28 |
| Pump Motor Power - 3 bar | kW | 7,5 |
| Length (L) | mm | 3970 |
| Width (W) | mm | 1680 |
| Height (H) | mm | 2150 |
| Water Inlet Connection | inch | 4" |
| Water Outlet Connection | inch | 4" |
| Weight | Kg | 2100 |
| Tank Volume | Lt | 1100 |
Specifications are indicative. Final performance is confirmed at design selection.
Technical drawing
Documents
| Cooling Capacity | kW | 376,0 |
|---|---|---|
| Cooling Capacity | kcal/h | 323,360 |
| Number of Compressors | pcs | 2 |
| Total Compressor Power | kW | 55,8 |
| Total Power Input | kW | 68,9 |
| Energy Efficiency Ratio (EER) | EER | 5,5 |
| Evaporator Water Flow Δt=5°C | m³/h | 64,7 |
| Cooling Capacity | kW | 343,6 |
| Cooling Capacity | kcal/h | 295,496 |
| Number of Compressors | pcs | 2 |
| Total Compressor Power | kW | 67,4 |
| Total Power Input | kW | 80,5 |
| Energy Efficiency Ratio (EER) | EER | 4,3 |
| Evaporator Water Flow Δt=5°C | m³/h | 59,1 |
| Cooling Capacity | kW | 250,6 |
| Cooling Capacity | kcal/h | 215,516 |
| Number of Compressors | pcs | 2 |
| Total Compressor Power | kW | 72,8 |
| Total Power Input | kW | 85,9 |
| Energy Efficiency Ratio (EER) | EER | 2,9 |
| Evaporator Water Flow Δt=5°C | m³/h | 43,1 |
| Fan Diameter | mm | Ø800 |
| Number of Fans | pcs | 4 |
| Air Flow | m³/h | 88.000 |
| Fan Motor Power | kW | 5,6 |
| Fan Sound Pressure Level (10 m) | dBA | 43 |
| Power Supply | 400 V / 3 PH / 50 Hz. | |
| Nominal Current | A | 203,28 |
| Max. Current | A | 271,28 |
| Pump Motor Power - 3 bar | kW | 7,5 |
| Length (L) | mm | 3970 |
| Width (W) | mm | 1680 |
| Height (H) | mm | 2150 |
| Water Inlet Connection | inch | 4" |
| Water Outlet Connection | inch | 4" |
| Weight | Kg | 2350 |
| Tank Volume | Lt | 1100 |
Specifications are indicative. Final performance is confirmed at design selection.
Technical drawing
Documents
| Cooling Capacity | kW | 87,9 |
|---|---|---|
| Cooling Capacity | kcal/h | 75,594 |
| Number of Compressors | pcs | 3 |
| Total Compressor Power | kW | 12,9 |
| Total Power Input | kW | 18,9 |
| Energy Efficiency Ratio (EER) | EER | 4,7 |
| Evaporator Water Flow Δt=5°C | m³/h | 15,1 |
| Cooling Capacity | kW | 80,7 |
| Cooling Capacity | kcal/h | 69,402 |
| Number of Compressors | pcs | 3 |
| Total Compressor Power | kW | 15,9 |
| Total Power Input | kW | 21,9 |
| Energy Efficiency Ratio (EER) | EER | 3,7 |
| Evaporator Water Flow Δt=5°C | m³/h | 13,9 |
| Cooling Capacity | kW | 58,2 |
| Cooling Capacity | kcal/h | 50,052 |
| Number of Compressors | pcs | 3 |
| Total Compressor Power | kW | 17,7 |
| Total Power Input | kW | 23,7 |
| Energy Efficiency Ratio (EER) | EER | 2,5 |
| Evaporator Water Flow Δt=5°C | m³/h | 10,0 |
| Fan Diameter | mm | Ø500 |
| Number of Fans | pcs | 4 |
| Air Flow | m³/h | 32.000 |
| Fan Motor Power | kW | 3 |
| Fan Sound Pressure Level (10 m) | dBA | 51 |
| Power Supply | 400 V / 3 PH / 50 Hz. | |
| Nominal Current | A | 51,7 |
| Max. Current | A | 69,7 |
| Pump Motor Power - 3 bar | kW | 3 |
| Length (L) | mm | 3020 |
| Width (W) | mm | 1100 |
| Height (H) | mm | 1550 |
| Water Inlet Connection | inch | 2" |
| Water Outlet Connection | inch | 2" |
| Weight | Kg | 1110 |
| Tank Volume | Lt | 300 |
Specifications are indicative. Final performance is confirmed at design selection.
Technical drawing
Documents
| Cooling Capacity | kW | 103,8 |
|---|---|---|
| Cooling Capacity | kcal/h | 89,268 |
| Number of Compressors | pcs | 3 |
| Total Compressor Power | kW | 15,6 |
| Total Power Input | kW | 22,6 |
| Energy Efficiency Ratio (EER) | EER | 4,6 |
| Evaporator Water Flow Δt=5°C | m³/h | 17,9 |
| Cooling Capacity | kW | 95,4 |
| Cooling Capacity | kcal/h | 82,044 |
| Number of Compressors | pcs | 3 |
| Total Compressor Power | kW | 18,9 |
| Total Power Input | kW | 25,9 |
| Energy Efficiency Ratio (EER) | EER | 3,7 |
| Evaporator Water Flow Δt=5°C | m³/h | 16,4 |
| Cooling Capacity | kW | 68,7 |
| Cooling Capacity | kcal/h | 59,082 |
| Number of Compressors | pcs | 3 |
| Total Compressor Power | kW | 20,7 |
| Total Power Input | kW | 27,7 |
| Energy Efficiency Ratio (EER) | EER | 2,5 |
| Evaporator Water Flow Δt=5°C | m³/h | 11,8 |
| Fan Diameter | mm | Ø500 |
| Number of Fans | pcs | 4 |
| Air Flow | m³/h | 32.000 |
| Fan Motor Power | kW | 3 |
| Fan Sound Pressure Level (10 m) | dBA | 51 |
| Power Supply | 400 V / 3 PH / 50 Hz. | |
| Nominal Current | A | 59,2 |
| Max. Current | A | 80,8 |
| Pump Motor Power - 3 bar | kW | 4 |
| Length (L) | mm | 3020 |
| Width (W) | mm | 1100 |
| Height (H) | mm | 1550 |
| Water Inlet Connection | inch | 2" |
| Water Outlet Connection | inch | 2" |
| Weight | Kg | 1260 |
| Tank Volume | Lt | 400 |
Specifications are indicative. Final performance is confirmed at design selection.
Technical drawing
Documents
| Cooling Capacity | kW | 117,9 |
|---|---|---|
| Cooling Capacity | kcal/h | 101,394 |
| Number of Compressors | pcs | 3 |
| Total Compressor Power | kW | 17,1 |
| Total Power Input | kW | 24,1 |
| Energy Efficiency Ratio (EER) | EER | 4,9 |
| Evaporator Water Flow Δt=5°C | m³/h | 20,3 |
| Cooling Capacity | kW | 108,0 |
| Cooling Capacity | kcal/h | 92,880 |
| Number of Compressors | pcs | 3 |
| Total Compressor Power | kW | 21 |
| Total Power Input | kW | 28 |
| Energy Efficiency Ratio (EER) | EER | 3,9 |
| Evaporator Water Flow Δt=5°C | m³/h | 18,6 |
| Cooling Capacity | kW | 78,0 |
| Cooling Capacity | kcal/h | 67,080 |
| Number of Compressors | pcs | 3 |
| Total Compressor Power | kW | 23,1 |
| Total Power Input | kW | 30,1 |
| Energy Efficiency Ratio (EER) | EER | 2,6 |
| Evaporator Water Flow Δt=5°C | m³/h | 13,4 |
| Fan Diameter | mm | Ø500 |
| Number of Fans | pcs | 4 |
| Air Flow | m³/h | 32.000 |
| Fan Motor Power | kW | 3 |
| Fan Sound Pressure Level (10 m) | dBA | 53 |
| Power Supply | 400 V / 3 PH / 50 Hz. | |
| Nominal Current | A | 82 |
| Max. Current | A | 99,4 |
| Pump Motor Power - 3 bar | kW | 4 |
| Length (L) | mm | 3020 |
| Width (W) | mm | 1100 |
| Height (H) | mm | 1550 |
| Water Inlet Connection | inch | 2" |
| Water Outlet Connection | inch | 2" |
| Weight | Kg | 1500 |
| Tank Volume | Lt | 400 |
Specifications are indicative. Final performance is confirmed at design selection.
Technical drawing
Documents
| Cooling Capacity | kW | 133,5 |
|---|---|---|
| Cooling Capacity | kcal/h | 114,810 |
| Number of Compressors | pcs | 3 |
| Total Compressor Power | kW | 19,8 |
| Total Power Input | kW | 28,3 |
| Energy Efficiency Ratio (EER) | EER | 4,7 |
| Evaporator Water Flow Δt=5°C | m³/h | 23,0 |
| Cooling Capacity | kW | 122,4 |
| Cooling Capacity | kcal/h | 105,264 |
| Number of Compressors | pcs | 3 |
| Total Compressor Power | kW | 24 |
| Total Power Input | kW | 32,5 |
| Energy Efficiency Ratio (EER) | EER | 3,8 |
| Evaporator Water Flow Δt=5°C | m³/h | 21,1 |
| Cooling Capacity | kW | 88,5 |
| Cooling Capacity | kcal/h | 76,110 |
| Number of Compressors | pcs | 3 |
| Total Compressor Power | kW | 26,1 |
| Total Power Input | kW | 34,6 |
| Energy Efficiency Ratio (EER) | EER | 2,6 |
| Evaporator Water Flow Δt=5°C | m³/h | 15,2 |
| Fan Diameter | mm | Ø500 |
| Number of Fans | pcs | 6 |
| Air Flow | m³/h | 48.000 |
| Fan Motor Power | kW | 4,5 |
| Fan Sound Pressure Level (10 m) | dBA | 53 |
| Power Supply | 400 V / 3 PH / 50 Hz. | |
| Nominal Current | A | 98,7 |
| Max. Current | A | 126 |
| Pump Motor Power - 3 bar | kW | 4 |
| Length (L) | mm | 3390 |
| Width (W) | mm | 1680 |
| Height (H) | mm | 2150 |
| Water Inlet Connection | inch | 2 1/2" |
| Water Outlet Connection | inch | 2 1/2" |
| Weight | Kg | 1650 |
| Tank Volume | Lt | 400 |
Specifications are indicative. Final performance is confirmed at design selection.
Technical drawing
Documents
| Cooling Capacity | kW | 153,0 |
|---|---|---|
| Cooling Capacity | kcal/h | 131,580 |
| Number of Compressors | pcs | 3 |
| Total Compressor Power | kW | 22,5 |
| Total Power Input | kW | 31 |
| Energy Efficiency Ratio (EER) | EER | 4,9 |
| Evaporator Water Flow Δt=5°C | m³/h | 26,3 |
| Cooling Capacity | kW | 140,7 |
| Cooling Capacity | kcal/h | 121,002 |
| Number of Compressors | pcs | 3 |
| Total Compressor Power | kW | 24,3 |
| Total Power Input | kW | 32,8 |
| Energy Efficiency Ratio (EER) | EER | 4,3 |
| Evaporator Water Flow Δt=5°C | m³/h | 24,2 |
| Cooling Capacity | kW | 102,0 |
| Cooling Capacity | kcal/h | 87,720 |
| Number of Compressors | pcs | 3 |
| Total Compressor Power | kW | 29,7 |
| Total Power Input | kW | 38,2 |
| Energy Efficiency Ratio (EER) | EER | 2,7 |
| Evaporator Water Flow Δt=5°C | m³/h | 17,5 |
| Fan Diameter | mm | Ø500 |
| Number of Fans | pcs | 6 |
| Air Flow | m³/h | 48.000 |
| Fan Motor Power | kW | 4,5 |
| Fan Sound Pressure Level (10 m) | dBA | 53 |
| Power Supply | 400 V / 3 PH / 50 Hz. | |
| Nominal Current | A | 105 |
| Max. Current | A | 138 |
| Pump Motor Power - 3 bar | kW | 4 |
| Length (L) | mm | 3390 |
| Width (W) | mm | 1680 |
| Height (H) | mm | 2150 |
| Water Inlet Connection | inch | 2 1/2" |
| Water Outlet Connection | inch | 2 1/2" |
| Weight | Kg | 1650 |
| Tank Volume | Lt | 400 |
Specifications are indicative. Final performance is confirmed at design selection.
Technical drawing
Documents
| Cooling Capacity | kW | 171,9 |
|---|---|---|
| Cooling Capacity | kcal/h | 147,834 |
| Number of Compressors | pcs | 3 |
| Total Compressor Power | kW | 25,5 |
| Total Power Input | kW | 35,5 |
| Energy Efficiency Ratio (EER) | EER | 4,8 |
| Evaporator Water Flow Δt=5°C | m³/h | 29,6 |
| Cooling Capacity | kW | 157,2 |
| Cooling Capacity | kcal/h | 135,192 |
| Number of Compressors | pcs | 3 |
| Total Compressor Power | kW | 30,6 |
| Total Power Input | kW | 40,6 |
| Energy Efficiency Ratio (EER) | EER | 3,9 |
| Evaporator Water Flow Δt=5°C | m³/h | 27,0 |
| Cooling Capacity | kW | 114,0 |
| Cooling Capacity | kcal/h | 98,040 |
| Number of Compressors | pcs | 3 |
| Total Compressor Power | kW | 33,3 |
| Total Power Input | kW | 43,3 |
| Energy Efficiency Ratio (EER) | EER | 2,6 |
| Evaporator Water Flow Δt=5°C | m³/h | 19,6 |
| Fan Diameter | mm | Ø500 |
| Number of Fans | pcs | 6 |
| Air Flow | m³/h | 48.000 |
| Fan Motor Power | kW | 4,5 |
| Fan Sound Pressure Level (10 m) | dBA | 54 |
| Power Supply | 400 V / 3 PH / 50 Hz. | |
| Nominal Current | A | 130,8 |
| Max. Current | A | 148,8 |
| Pump Motor Power - 3 bar | kW | 5,5 |
| Length (L) | mm | 3390 |
| Width (W) | mm | 1680 |
| Height (H) | mm | 2150 |
| Water Inlet Connection | inch | 2 1/2" |
| Water Outlet Connection | inch | 2 1/2" |
| Weight | Kg | 2025 |
| Tank Volume | Lt | 500 |
Specifications are indicative. Final performance is confirmed at design selection.
Technical drawing
Documents
| Cooling Capacity | kW | 231,0 |
|---|---|---|
| Cooling Capacity | kcal/h | 198,660 |
| Number of Compressors | pcs | 3 |
| Total Compressor Power | kW | 34,8 |
| Total Power Input | kW | 46,3 |
| Energy Efficiency Ratio (EER) | EER | 5,0 |
| Evaporator Water Flow Δt=5°C | m³/h | 39,7 |
| Cooling Capacity | kW | 211,8 |
| Cooling Capacity | kcal/h | 182,148 |
| Number of Compressors | pcs | 3 |
| Total Compressor Power | kW | 42,3 |
| Total Power Input | kW | 53,8 |
| Energy Efficiency Ratio (EER) | EER | 3,9 |
| Evaporator Water Flow Δt=5°C | m³/h | 36,4 |
| Cooling Capacity | kW | 153,9 |
| Cooling Capacity | kcal/h | 132,354 |
| Number of Compressors | pcs | 3 |
| Total Compressor Power | kW | 45,9 |
| Total Power Input | kW | 57,4 |
| Energy Efficiency Ratio (EER) | EER | 2,7 |
| Evaporator Water Flow Δt=5°C | m³/h | 26,5 |
| Fan Diameter | mm | Ø500 |
| Number of Fans | pcs | 8 |
| Air Flow | m³/h | 64.000 |
| Fan Motor Power | kW | 6 |
| Fan Sound Pressure Level (10 m) | dBA | 54 |
| Power Supply | 400 V / 3 PH / 50 Hz. | |
| Nominal Current | A | 148,4 |
| Max. Current | A | 190,4 |
| Pump Motor Power - 3 bar | kW | 5,5 |
| Length (L) | mm | 3970 |
| Width (W) | mm | 1680 |
| Height (H) | mm | 2150 |
| Water Inlet Connection | inch | 3" |
| Water Outlet Connection | inch | 3" |
| Weight | Kg | 2175 |
| Tank Volume | Lt | 800 |
Specifications are indicative. Final performance is confirmed at design selection.
Technical drawing
Documents
| Cooling Capacity | kW | 282,3 |
|---|---|---|
| Cooling Capacity | kcal/h | 242,778 |
| Number of Compressors | pcs | 3 |
| Total Compressor Power | kW | 42,6 |
| Total Power Input | kW | 55,7 |
| Energy Efficiency Ratio (EER) | EER | 5,1 |
| Evaporator Water Flow Δt=5°C | m³/h | 48,6 |
| Cooling Capacity | kW | 258,9 |
| Cooling Capacity | kcal/h | 222,654 |
| Number of Compressors | pcs | 3 |
| Total Compressor Power | kW | 50,7 |
| Total Power Input | kW | 63,8 |
| Energy Efficiency Ratio (EER) | EER | 4,1 |
| Evaporator Water Flow Δt=5°C | m³/h | 44,5 |
| Cooling Capacity | kW | 188,7 |
| Cooling Capacity | kcal/h | 162,282 |
| Number of Compressors | pcs | 3 |
| Total Compressor Power | kW | 54,6 |
| Total Power Input | kW | 67,7 |
| Energy Efficiency Ratio (EER) | EER | 2,8 |
| Evaporator Water Flow Δt=5°C | m³/h | 32,5 |
| Fan Diameter | mm | Ø800 |
| Number of Fans | pcs | 4 |
| Air Flow | m³/h | 88.000 |
| Fan Motor Power | kW | 5,6 |
| Fan Sound Pressure Level (10 m) | dBA | 43 |
| Power Supply | 400 V / 3 PH / 50 Hz. | |
| Nominal Current | A | 184,28 |
| Max. Current | A | 244,28 |
| Pump Motor Power - 3 bar | kW | 7,5 |
| Length (L) | mm | 3250 |
| Width (W) | mm | 2250 |
| Height (H) | mm | 2740 |
| Water Inlet Connection | inch | 3" |
| Water Outlet Connection | inch | 3" |
| Weight | Kg | 2475 |
| Tank Volume | Lt | 800 |
Specifications are indicative. Final performance is confirmed at design selection.
Technical drawing
Documents
| Cooling Capacity | kW | 357,0 |
|---|---|---|
| Cooling Capacity | kcal/h | 307,020 |
| Number of Compressors | pcs | 3 |
| Total Compressor Power | kW | 53,7 |
| Total Power Input | kW | 69,6 |
| Energy Efficiency Ratio (EER) | EER | 5,1 |
| Evaporator Water Flow Δt=5°C | m³/h | 61,4 |
| Cooling Capacity | kW | 325,2 |
| Cooling Capacity | kcal/h | 279,672 |
| Number of Compressors | pcs | 3 |
| Total Compressor Power | kW | 64,5 |
| Total Power Input | kW | 80,4 |
| Energy Efficiency Ratio (EER) | EER | 4,0 |
| Evaporator Water Flow Δt=5°C | m³/h | 55,9 |
| Cooling Capacity | kW | 235,8 |
| Cooling Capacity | kcal/h | 202,788 |
| Number of Compressors | pcs | 3 |
| Total Compressor Power | kW | 69,6 |
| Total Power Input | kW | 85,5 |
| Energy Efficiency Ratio (EER) | EER | 2,8 |
| Evaporator Water Flow Δt=5°C | m³/h | 40,6 |
| Fan Diameter | mm | Ø800 |
| Number of Fans | pcs | 6 |
| Air Flow | m³/h | 132.000 |
| Fan Motor Power | kW | 8,4 |
| Fan Sound Pressure Level (10 m) | dBA | 43 |
| Power Supply | 400 V / 3 PH / 50 Hz. | |
| Nominal Current | A | 217,2 |
| Max. Current | A | 286,2 |
| Pump Motor Power - 3 bar | kW | 7,5 |
| Length (L) | mm | 3250 |
| Width (W) | mm | 2250 |
| Height (H) | mm | 2740 |
| Water Inlet Connection | inch | 3" |
| Water Outlet Connection | inch | 3" |
| Weight | Kg | 2625 |
| Tank Volume | Lt | 800 |
Specifications are indicative. Final performance is confirmed at design selection.
Technical drawing
Documents
| Cooling Capacity | kW | 456,6 |
|---|---|---|
| Cooling Capacity | kcal/h | 392,676 |
| Number of Compressors | pcs | 3 |
| Total Compressor Power | kW | 67,5 |
| Total Power Input | kW | 85,1 |
| Energy Efficiency Ratio (EER) | EER | 5,4 |
| Evaporator Water Flow Δt=5°C | m³/h | 78,5 |
| Cooling Capacity | kW | 420,0 |
| Cooling Capacity | kcal/h | 361,200 |
| Number of Compressors | pcs | 3 |
| Total Compressor Power | kW | 81,6 |
| Total Power Input | kW | 99,2 |
| Energy Efficiency Ratio (EER) | EER | 4,2 |
| Evaporator Water Flow Δt=5°C | m³/h | 72,2 |
| Cooling Capacity | kW | 303,0 |
| Cooling Capacity | kcal/h | 260,580 |
| Number of Compressors | pcs | 3 |
| Total Compressor Power | kW | 87,3 |
| Total Power Input | kW | 104,9 |
| Energy Efficiency Ratio (EER) | EER | 2,9 |
| Evaporator Water Flow Δt=5°C | m³/h | 52,1 |
| Fan Diameter | mm | Ø800 |
| Number of Fans | pcs | 6 |
| Air Flow | m³/h | 132.000 |
| Fan Motor Power | kW | 8,4 |
| Fan Sound Pressure Level (10 m) | dBA | 43 |
| Power Supply | 400 V / 3 PH / 50 Hz. | |
| Nominal Current | A | 283,8 |
| Max. Current | A | 376,8 |
| Pump Motor Power - 3 bar | kW | 9,2 |
| Length (L) | mm | 4330 |
| Width (W) | mm | 1680 |
| Height (H) | mm | 2150 |
| Water Inlet Connection | inch | 5" |
| Water Outlet Connection | inch | 5" |
| Weight | Kg | 3100 |
| Tank Volume | Lt | 1100 |
Specifications are indicative. Final performance is confirmed at design selection.
Technical drawing
Documents
| Cooling Capacity | kW | 564,0 |
|---|---|---|
| Cooling Capacity | kcal/h | 485,040 |
| Number of Compressors | pcs | 3 |
| Total Compressor Power | kW | 83,7 |
| Total Power Input | kW | 101,3 |
| Energy Efficiency Ratio (EER) | EER | 5,6 |
| Evaporator Water Flow Δt=5°C | m³/h | 97,0 |
| Cooling Capacity | kW | 515,4 |
| Cooling Capacity | kcal/h | 443,244 |
| Number of Compressors | pcs | 3 |
| Total Compressor Power | kW | 101,1 |
| Total Power Input | kW | 118,7 |
| Energy Efficiency Ratio (EER) | EER | 4,3 |
| Evaporator Water Flow Δt=5°C | m³/h | 88,6 |
| Cooling Capacity | kW | 375,9 |
| Cooling Capacity | kcal/h | 323,274 |
| Number of Compressors | pcs | 3 |
| Total Compressor Power | kW | 109,2 |
| Total Power Input | kW | 126,8 |
| Energy Efficiency Ratio (EER) | EER | 3,0 |
| Evaporator Water Flow Δt=5°C | m³/h | 64,7 |
| Fan Diameter | mm | Ø800 |
| Number of Fans | pcs | 6 |
| Air Flow | m³/h | 132.000 |
| Fan Motor Power | kW | 8,4 |
| Fan Sound Pressure Level (10 m) | dBA | 43 |
| Power Supply | 400 V / 3 PH / 50 Hz. | |
| Nominal Current | A | 307,8 |
| Max. Current | A | 409,8 |
| Pump Motor Power - 3 bar | kW | 9,2 |
| Length (L) | mm | 4330 |
| Width (W) | mm | 1680 |
| Height (H) | mm | 2150 |
| Water Inlet Connection | inch | 5" |
| Water Outlet Connection | inch | 5" |
| Weight | Kg | 3400 |
| Tank Volume | Lt | 1100 |
Specifications are indicative. Final performance is confirmed at design selection.
Technical drawing
Documents
Key features
- Hermetic scroll compressor
- Microprocessor control system
- Environmentally friendly R-410A refrigerant
- Direct expansion evaporator
- 50–100% capacity control
- Power and control panel to CE 2006/95/EC
- PLANER high-efficiency air-cooled condensers
- Axial fan
- Centrifugal pump
- Stainless steel reserve tank
- Dual refrigeration circuit on twin-compressor units
- Protective equipment for the refrigerant line
- Compressor run-hour equalisation
Technical specifications
| Cooling capacity | 13,5 – 375,9 kW |
|---|---|
| Refrigerant | R-410A |
| Compressor | Hermetic scroll |
| Capacity control | 50–100% |
Specifications are indicative. Final performance is confirmed at design selection.
Related
You may also consider
Multicold HA-S Serisi
Air-cooled water chiller with multiple hermetic scroll compressors on two gas circuits, R-410A refrigerant.
77,6 – 751,8 kW
R-410A
YHA-V Serisi
Air-cooled screw-compressor water chiller with R-407C refrigerant (103 – 1654 kW).
103 – 1654 kW
R-407C
Need help sizing the HA-S Serisi?
Send us your cooling load, fluid temperatures and ambient conditions — we'll confirm the right configuration for your process.
