Air Cooled Chillers
YHA-V Tropical Seri
Model YHA-V LS / LD (Tropical)
The YHA-V Tropical Series (LS/LD) comprises air-cooled screw chillers engineered for ambient temperatures up to 50 °C, covering 60,7 – 960 kW nominal capacity with performance rated at Tai = 40/45/50 °C. R-134A refrigerant, single (LS) and dual (LD) circuit options, shell-and-tube evaporator; the power/control panel complies with CE 2006/95/EC.
- Cooling capacity
- 60,7 – 960 kW
- Refrigerant
- R-134A
Technical data
Select a model
Performance figures, dimensions and the datasheet for every model in the series.
| Cooling Capacity | kW | 84,9 |
|---|---|---|
| Cooling Capacity | kcal/h | 73,014 |
| Number of Compressors | pcs | 1 |
| Total Compressor Power | kW | 26,5 |
| Total Power Input | kW | 32,5 |
| Energy Efficiency Ratio (EER) | EER | 2,6 |
| Evaporator Water Flow Δt=5°C | m³/h | 14,6 |
| Cooling Capacity | kW | 74,6 |
| Cooling Capacity | kcal/h | 64,156 |
| Number of Compressors | pcs | 1 |
| Total Compressor Power | kW | 30,4 |
| Total Power Input | kW | 36,4 |
| Energy Efficiency Ratio (EER) | EER | 2,0 |
| Evaporator Water Flow Δt=5°C | m³/h | 12,8 |
| Cooling Capacity | kW | 60,7 |
| Cooling Capacity | kcal/h | 52,202 |
| Number of Compressors | pcs | 1 |
| Total Compressor Power | kW | 25,3 |
| Total Power Input | kW | 31,3 |
| Energy Efficiency Ratio (EER) | EER | 1,9 |
| Evaporator Water Flow Δt=5°C | m³/h | 10,4 |
| Fan Diameter | mm | Ø500 |
| Number of Fans | pcs | 8 |
| Air Flow | m³/h | 64.000 |
| Fan Motor Power | kW | 6 |
| Fan Sound Pressure Level (10 m) | dBA | 48 |
| Power Supply | 400 V / 3 PH / 50 Hz. | |
| Nominal Current | A | 36,7 |
| Max. Current | A | 108,4 |
| Length (L) | mm | 3970 |
| Width (W) | mm | 1680 |
| Height (H) | mm | 2150 |
| Water Inlet Connection | inch | 3" |
| Water Outlet Connection | inch | 3" |
| Weight | Kg | 1500 |
Specifications are indicative. Final performance is confirmed at design selection.

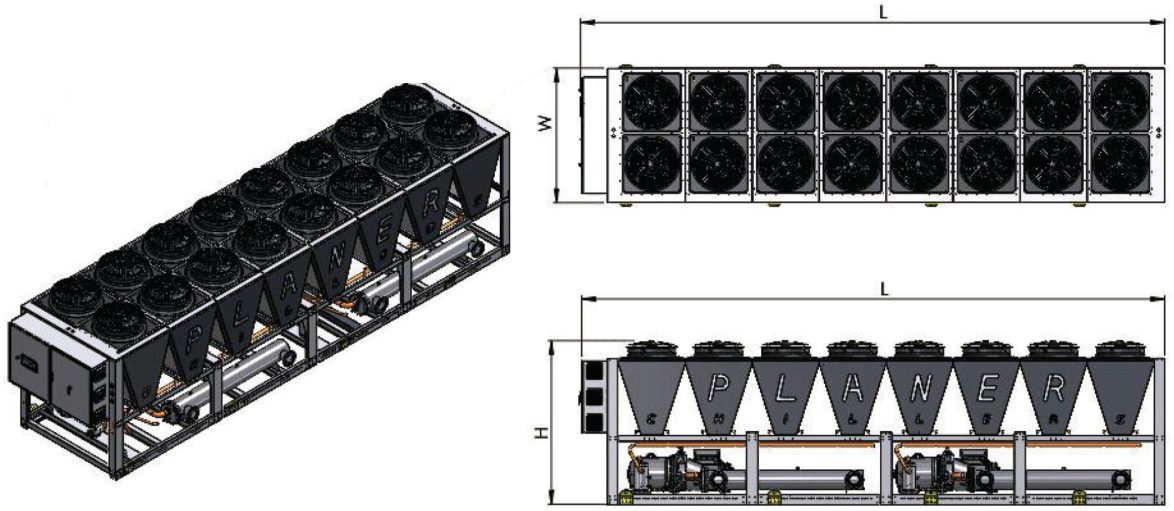

Technical drawing
Documents
| Cooling Capacity | kW | 106,5 |
|---|---|---|
| Cooling Capacity | kcal/h | 91,590 |
| Number of Compressors | pcs | 1 |
| Total Compressor Power | kW | 32,9 |
| Total Power Input | kW | 38,9 |
| Energy Efficiency Ratio (EER) | EER | 2,7 |
| Evaporator Water Flow Δt=5°C | m³/h | 18,3 |
| Cooling Capacity | kW | 93,6 |
| Cooling Capacity | kcal/h | 80,496 |
| Number of Compressors | pcs | 1 |
| Total Compressor Power | kW | 37,7 |
| Total Power Input | kW | 43,7 |
| Energy Efficiency Ratio (EER) | EER | 2,1 |
| Evaporator Water Flow Δt=5°C | m³/h | 16,1 |
| Cooling Capacity | kW | 76,2 |
| Cooling Capacity | kcal/h | 65,532 |
| Number of Compressors | pcs | 1 |
| Total Compressor Power | kW | 31,4 |
| Total Power Input | kW | 37,4 |
| Energy Efficiency Ratio (EER) | EER | 2,0 |
| Evaporator Water Flow Δt=5°C | m³/h | 13,1 |
| Fan Diameter | mm | Ø500 |
| Number of Fans | pcs | 8 |
| Air Flow | m³/h | 64.000 |
| Fan Motor Power | kW | 6 |
| Fan Sound Pressure Level (10 m) | dBA | 51 |
| Power Supply | 400 V / 3 PH / 50 Hz. | |
| Nominal Current | A | 42,7 |
| Max. Current | A | 130,4 |
| Length (L) | mm | 3970 |
| Width (W) | mm | 1680 |
| Height (H) | mm | 2150 |
| Water Inlet Connection | inch | 3" |
| Water Outlet Connection | inch | 3" |
| Weight | Kg | 1600 |
Specifications are indicative. Final performance is confirmed at design selection.
Technical drawing
Documents
| Cooling Capacity | kW | 123,0 |
|---|---|---|
| Cooling Capacity | kcal/h | 105,780 |
| Number of Compressors | pcs | 1 |
| Total Compressor Power | kW | 38,6 |
| Total Power Input | kW | 44,2 |
| Energy Efficiency Ratio (EER) | EER | 2,8 |
| Evaporator Water Flow Δt=5°C | m³/h | 21,2 |
| Cooling Capacity | kW | 107,7 |
| Cooling Capacity | kcal/h | 92,622 |
| Number of Compressors | pcs | 1 |
| Total Compressor Power | kW | 44,3 |
| Total Power Input | kW | 49,9 |
| Energy Efficiency Ratio (EER) | EER | 2,2 |
| Evaporator Water Flow Δt=5°C | m³/h | 18,5 |
| Cooling Capacity | kW | 86,7 |
| Cooling Capacity | kcal/h | 74,562 |
| Number of Compressors | pcs | 1 |
| Total Compressor Power | kW | 36,9 |
| Total Power Input | kW | 42,5 |
| Energy Efficiency Ratio (EER) | EER | 2,0 |
| Evaporator Water Flow Δt=5°C | m³/h | 14,9 |
| Fan Diameter | mm | Ø800 |
| Number of Fans | pcs | 4 |
| Air Flow | m³/h | 88.000 |
| Fan Motor Power | kW | 5,6 |
| Fan Sound Pressure Level (10 m) | dBA | 54 |
| Power Supply | 400 V / 3 PH / 50 Hz. | |
| Nominal Current | A | 44,1 |
| Max. Current | A | 143,2 |
| Length (L) | mm | 3250 |
| Width (W) | mm | 2250 |
| Height (H) | mm | 2740 |
| Water Inlet Connection | inch | 4" |
| Water Outlet Connection | inch | 4" |
| Weight | Kg | 1700 |
Specifications are indicative. Final performance is confirmed at design selection.
Technical drawing
Documents
| Cooling Capacity | kW | 141,4 |
|---|---|---|
| Cooling Capacity | kcal/h | 121,604 |
| Number of Compressors | pcs | 1 |
| Total Compressor Power | kW | 43,3 |
| Total Power Input | kW | 48,9 |
| Energy Efficiency Ratio (EER) | EER | 2,9 |
| Evaporator Water Flow Δt=5°C | m³/h | 24,3 |
| Cooling Capacity | kW | 122,0 |
| Cooling Capacity | kcal/h | 104,920 |
| Number of Compressors | pcs | 1 |
| Total Compressor Power | kW | 49,2 |
| Total Power Input | kW | 54,8 |
| Energy Efficiency Ratio (EER) | EER | 2,2 |
| Evaporator Water Flow Δt=5°C | m³/h | 21,0 |
| Cooling Capacity | kW | 99,8 |
| Cooling Capacity | kcal/h | 85,828 |
| Number of Compressors | pcs | 1 |
| Total Compressor Power | kW | 41,2 |
| Total Power Input | kW | 46,8 |
| Energy Efficiency Ratio (EER) | EER | 2,1 |
| Evaporator Water Flow Δt=5°C | m³/h | 17,2 |
| Fan Diameter | mm | Ø800 |
| Number of Fans | pcs | 4 |
| Air Flow | m³/h | 88.000 |
| Fan Motor Power | kW | 5,6 |
| Fan Sound Pressure Level (10 m) | dBA | 54 |
| Power Supply | 400 V / 3 PH / 50 Hz. | |
| Nominal Current | A | 51,1 |
| Max. Current | A | 159,2 |
| Length (L) | mm | 3250 |
| Width (W) | mm | 2250 |
| Height (H) | mm | 2740 |
| Water Inlet Connection | inch | 4" |
| Water Outlet Connection | inch | 4" |
| Weight | Kg | 1900 |
Specifications are indicative. Final performance is confirmed at design selection.
Technical drawing
Documents
| Cooling Capacity | kW | 164,1 |
|---|---|---|
| Cooling Capacity | kcal/h | 141,126 |
| Number of Compressors | pcs | 1 |
| Total Compressor Power | kW | 50 |
| Total Power Input | kW | 55,6 |
| Energy Efficiency Ratio (EER) | EER | 3,0 |
| Evaporator Water Flow Δt=5°C | m³/h | 28,2 |
| Cooling Capacity | kW | 144,0 |
| Cooling Capacity | kcal/h | 123,840 |
| Number of Compressors | pcs | 1 |
| Total Compressor Power | kW | 57,1 |
| Total Power Input | kW | 62,7 |
| Energy Efficiency Ratio (EER) | EER | 2,3 |
| Evaporator Water Flow Δt=5°C | m³/h | 24,8 |
| Cooling Capacity | kW | 117,0 |
| Cooling Capacity | kcal/h | 100,620 |
| Number of Compressors | pcs | 1 |
| Total Compressor Power | kW | 47,8 |
| Total Power Input | kW | 53,4 |
| Energy Efficiency Ratio (EER) | EER | 2,2 |
| Evaporator Water Flow Δt=5°C | m³/h | 20,1 |
| Fan Diameter | mm | Ø800 |
| Number of Fans | pcs | 4 |
| Air Flow | m³/h | 88.000 |
| Fan Motor Power | kW | 5,6 |
| Fan Sound Pressure Level (10 m) | dBA | 54 |
| Power Supply | 400 V / 3 PH / 50 Hz. | |
| Nominal Current | A | 52,6 |
| Max. Current | A | 177,2 |
| Length (L) | mm | 3250 |
| Width (W) | mm | 2250 |
| Height (H) | mm | 2740 |
| Water Inlet Connection | inch | 4" |
| Water Outlet Connection | inch | 4" |
| Weight | Kg | 1900 |
Specifications are indicative. Final performance is confirmed at design selection.
Technical drawing
Documents
| Cooling Capacity | kW | 191,4 |
|---|---|---|
| Cooling Capacity | kcal/h | 164,604 |
| Number of Compressors | pcs | 1 |
| Total Compressor Power | kW | 58,1 |
| Total Power Input | kW | 63,7 |
| Energy Efficiency Ratio (EER) | EER | 3,0 |
| Evaporator Water Flow Δt=5°C | m³/h | 32,9 |
| Cooling Capacity | kW | 169,3 |
| Cooling Capacity | kcal/h | 145,598 |
| Number of Compressors | pcs | 1 |
| Total Compressor Power | kW | 66,3 |
| Total Power Input | kW | 71,9 |
| Energy Efficiency Ratio (EER) | EER | 2,4 |
| Evaporator Water Flow Δt=5°C | m³/h | 29,1 |
| Cooling Capacity | kW | 137,7 |
| Cooling Capacity | kcal/h | 118,422 |
| Number of Compressors | pcs | 1 |
| Total Compressor Power | kW | 55,5 |
| Total Power Input | kW | 61,1 |
| Energy Efficiency Ratio (EER) | EER | 2,3 |
| Evaporator Water Flow Δt=5°C | m³/h | 23,7 |
| Fan Diameter | mm | Ø800 |
| Number of Fans | pcs | 4 |
| Air Flow | m³/h | 88.000 |
| Fan Motor Power | kW | 5,6 |
| Fan Sound Pressure Level (10 m) | dBA | 54 |
| Power Supply | 400 V / 3 PH / 50 Hz. | |
| Nominal Current | A | 60,1 |
| Max. Current | A | 185,2 |
| Length (L) | mm | 3250 |
| Width (W) | mm | 2250 |
| Height (H) | mm | 2740 |
| Water Inlet Connection | inch | 4" |
| Water Outlet Connection | inch | 4" |
| Weight | Kg | 2250 |
Specifications are indicative. Final performance is confirmed at design selection.
Technical drawing
Documents
| Cooling Capacity | kW | 218,0 |
|---|---|---|
| Cooling Capacity | kcal/h | 187,480 |
| Number of Compressors | pcs | 1 |
| Total Compressor Power | kW | 65,7 |
| Total Power Input | kW | 71,3 |
| Energy Efficiency Ratio (EER) | EER | 3,1 |
| Evaporator Water Flow Δt=5°C | m³/h | 37,5 |
| Cooling Capacity | kW | 192,5 |
| Cooling Capacity | kcal/h | 165,550 |
| Number of Compressors | pcs | 1 |
| Total Compressor Power | kW | 75,4 |
| Total Power Input | kW | 81 |
| Energy Efficiency Ratio (EER) | EER | 2,4 |
| Evaporator Water Flow Δt=5°C | m³/h | 33,1 |
| Cooling Capacity | kW | 156,5 |
| Cooling Capacity | kcal/h | 134,590 |
| Number of Compressors | pcs | 1 |
| Total Compressor Power | kW | 62,7 |
| Total Power Input | kW | 68,3 |
| Energy Efficiency Ratio (EER) | EER | 2,3 |
| Evaporator Water Flow Δt=5°C | m³/h | 26,9 |
| Fan Diameter | mm | Ø800 |
| Number of Fans | pcs | 4 |
| Air Flow | m³/h | 88.000 |
| Fan Motor Power | kW | 5,6 |
| Fan Sound Pressure Level (10 m) | dBA | 54 |
| Power Supply | 400 V / 3 PH / 50 Hz. | |
| Nominal Current | A | 69,1 |
| Max. Current | A | 195,2 |
| Length (L) | mm | 3250 |
| Width (W) | mm | 2250 |
| Height (H) | mm | 2740 |
| Water Inlet Connection | inch | 5" |
| Water Outlet Connection | inch | 5" |
| Weight | Kg | 2250 |
Specifications are indicative. Final performance is confirmed at design selection.
Technical drawing
Documents
| Cooling Capacity | kW | 234,0 |
|---|---|---|
| Cooling Capacity | kcal/h | 201,240 |
| Number of Compressors | pcs | 1 |
| Total Compressor Power | kW | 70,2 |
| Total Power Input | kW | 78,6 |
| Energy Efficiency Ratio (EER) | EER | 3,0 |
| Evaporator Water Flow Δt=5°C | m³/h | 40,2 |
| Cooling Capacity | kW | 207,0 |
| Cooling Capacity | kcal/h | 178,020 |
| Number of Compressors | pcs | 1 |
| Total Compressor Power | kW | 81 |
| Total Power Input | kW | 89,4 |
| Energy Efficiency Ratio (EER) | EER | 2,3 |
| Evaporator Water Flow Δt=5°C | m³/h | 35,6 |
| Cooling Capacity | kW | 168,7 |
| Cooling Capacity | kcal/h | 145,082 |
| Number of Compressors | pcs | 1 |
| Total Compressor Power | kW | 68,4 |
| Total Power Input | kW | 76,8 |
| Energy Efficiency Ratio (EER) | EER | 2,2 |
| Evaporator Water Flow Δt=5°C | m³/h | 29,0 |
| Fan Diameter | mm | Ø800 |
| Number of Fans | pcs | 6 |
| Air Flow | m³/h | 132.000 |
| Fan Motor Power | kW | 8,4 |
| Fan Sound Pressure Level (10 m) | dBA | 54 |
| Power Supply | 400 V / 3 PH / 50 Hz. | |
| Nominal Current | A | 77,4 |
| Max. Current | A | 238,8 |
| Length (L) | mm | 4330 |
| Width (W) | mm | 2250 |
| Height (H) | mm | 2740 |
| Water Inlet Connection | inch | 5" |
| Water Outlet Connection | inch | 5" |
| Weight | Kg | 2500 |
Specifications are indicative. Final performance is confirmed at design selection.
Technical drawing
Documents
| Cooling Capacity | kW | 270,0 |
|---|---|---|
| Cooling Capacity | kcal/h | 232,200 |
| Number of Compressors | pcs | 1 |
| Total Compressor Power | kW | 80,1 |
| Total Power Input | kW | 88,5 |
| Energy Efficiency Ratio (EER) | EER | 3,1 |
| Evaporator Water Flow Δt=5°C | m³/h | 46,4 |
| Cooling Capacity | kW | 239,0 |
| Cooling Capacity | kcal/h | 205,540 |
| Number of Compressors | pcs | 1 |
| Total Compressor Power | kW | 92,6 |
| Total Power Input | kW | 101 |
| Energy Efficiency Ratio (EER) | EER | 2,4 |
| Evaporator Water Flow Δt=5°C | m³/h | 41,1 |
| Cooling Capacity | kW | 194,9 |
| Cooling Capacity | kcal/h | 167,614 |
| Number of Compressors | pcs | 1 |
| Total Compressor Power | kW | 77 |
| Total Power Input | kW | 85,4 |
| Energy Efficiency Ratio (EER) | EER | 2,3 |
| Evaporator Water Flow Δt=5°C | m³/h | 33,5 |
| Fan Diameter | mm | Ø800 |
| Number of Fans | pcs | 6 |
| Air Flow | m³/h | 132.000 |
| Fan Motor Power | kW | 8,4 |
| Fan Sound Pressure Level (10 m) | dBA | 54 |
| Power Supply | 400 V / 3 PH / 50 Hz. | |
| Nominal Current | A | 85,9 |
| Max. Current | A | 268,8 |
| Length (L) | mm | 4330 |
| Width (W) | mm | 2250 |
| Height (H) | mm | 2740 |
| Water Inlet Connection | inch | 5" |
| Water Outlet Connection | inch | 5" |
| Weight | Kg | 2950 |
Specifications are indicative. Final performance is confirmed at design selection.
Technical drawing
Documents
| Cooling Capacity | kW | 295,0 |
|---|---|---|
| Cooling Capacity | kcal/h | 253,700 |
| Number of Compressors | pcs | 1 |
| Total Compressor Power | kW | 90,2 |
| Total Power Input | kW | 101,4 |
| Energy Efficiency Ratio (EER) | EER | 2,9 |
| Evaporator Water Flow Δt=5°C | m³/h | 50,7 |
| Cooling Capacity | kW | 263,0 |
| Cooling Capacity | kcal/h | 226,180 |
| Number of Compressors | pcs | 1 |
| Total Compressor Power | kW | 104 |
| Total Power Input | kW | 115,2 |
| Energy Efficiency Ratio (EER) | EER | 2,3 |
| Evaporator Water Flow Δt=5°C | m³/h | 45,2 |
| Cooling Capacity | kW | 211,0 |
| Cooling Capacity | kcal/h | 181,460 |
| Number of Compressors | pcs | 1 |
| Total Compressor Power | kW | 86,2 |
| Total Power Input | kW | 97,4 |
| Energy Efficiency Ratio (EER) | EER | 2,2 |
| Evaporator Water Flow Δt=5°C | m³/h | 36,3 |
| Fan Diameter | mm | Ø800 |
| Number of Fans | pcs | 8 |
| Air Flow | m³/h | 176.000 |
| Fan Motor Power | kW | 11,2 |
| Fan Sound Pressure Level (10 m) | dBA | 54 |
| Power Supply | 400 V / 3 PH / 50 Hz. | |
| Nominal Current | A | 95,7 |
| Max. Current | A | 290,4 |
| Length (L) | mm | 5450 |
| Width (W) | mm | 2250 |
| Height (H) | mm | 2740 |
| Water Inlet Connection | inch | 6" |
| Water Outlet Connection | inch | 6" |
| Weight | Kg | 2950 |
Specifications are indicative. Final performance is confirmed at design selection.
Technical drawing
Documents
| Cooling Capacity | kW | 345,0 |
|---|---|---|
| Cooling Capacity | kcal/h | 296,700 |
| Number of Compressors | pcs | 1 |
| Total Compressor Power | kW | 101,7 |
| Total Power Input | kW | 112,9 |
| Energy Efficiency Ratio (EER) | EER | 3,1 |
| Evaporator Water Flow Δt=5°C | m³/h | 59,3 |
| Cooling Capacity | kW | 309,0 |
| Cooling Capacity | kcal/h | 265,740 |
| Number of Compressors | pcs | 1 |
| Total Compressor Power | kW | 117 |
| Total Power Input | kW | 128,2 |
| Energy Efficiency Ratio (EER) | EER | 2,4 |
| Evaporator Water Flow Δt=5°C | m³/h | 53,1 |
| Cooling Capacity | kW | 247,0 |
| Cooling Capacity | kcal/h | 212,420 |
| Number of Compressors | pcs | 1 |
| Total Compressor Power | kW | 97,3 |
| Total Power Input | kW | 108,5 |
| Energy Efficiency Ratio (EER) | EER | 2,3 |
| Evaporator Water Flow Δt=5°C | m³/h | 42,5 |
| Fan Diameter | mm | Ø800 |
| Number of Fans | pcs | 8 |
| Air Flow | m³/h | 176.000 |
| Fan Motor Power | kW | 11,2 |
| Fan Sound Pressure Level (10 m) | dBA | 54 |
| Power Supply | 400 V / 3 PH / 50 Hz. | |
| Nominal Current | A | 110,7 |
| Max. Current | A | 340,4 |
| Length (L) | mm | 5450 |
| Width (W) | mm | 2250 |
| Height (H) | mm | 2740 |
| Water Inlet Connection | inch | 6" |
| Water Outlet Connection | inch | 6" |
| Weight | Kg | 3450 |
Specifications are indicative. Final performance is confirmed at design selection.
Technical drawing
Documents
| Cooling Capacity | kW | 401,0 |
|---|---|---|
| Cooling Capacity | kcal/h | 344,860 |
| Number of Compressors | pcs | 1 |
| Total Compressor Power | kW | 116,7 |
| Total Power Input | kW | 130,7 |
| Energy Efficiency Ratio (EER) | EER | 3,1 |
| Evaporator Water Flow Δt=5°C | m³/h | 69,0 |
| Cooling Capacity | kW | 355,0 |
| Cooling Capacity | kcal/h | 305,300 |
| Number of Compressors | pcs | 1 |
| Total Compressor Power | kW | 133 |
| Total Power Input | kW | 147 |
| Energy Efficiency Ratio (EER) | EER | 2,4 |
| Evaporator Water Flow Δt=5°C | m³/h | 61,1 |
| Cooling Capacity | kW | 288,0 |
| Cooling Capacity | kcal/h | 247,680 |
| Number of Compressors | pcs | 1 |
| Total Compressor Power | kW | 113,1 |
| Total Power Input | kW | 127,1 |
| Energy Efficiency Ratio (EER) | EER | 2,3 |
| Evaporator Water Flow Δt=5°C | m³/h | 49,5 |
| Fan Diameter | mm | Ø800 |
| Number of Fans | pcs | 10 |
| Air Flow | m³/h | 220.000 |
| Fan Motor Power | kW | 14 |
| Fan Sound Pressure Level (10 m) | dBA | 54 |
| Power Supply | 400 V / 3 PH / 50 Hz. | |
| Nominal Current | A | 121,5 |
| Max. Current | A | 408 |
| Length (L) | mm | 6570 |
| Width (W) | mm | 2250 |
| Height (H) | mm | 2740 |
| Water Inlet Connection | inch | 6" |
| Water Outlet Connection | inch | 6" |
| Weight | Kg | 3850 |
Specifications are indicative. Final performance is confirmed at design selection.
Technical drawing
Documents
| Cooling Capacity | kW | 464,0 |
|---|---|---|
| Cooling Capacity | kcal/h | 399,040 |
| Number of Compressors | pcs | 1 |
| Total Compressor Power | kW | 133,7 |
| Total Power Input | kW | 150,5 |
| Energy Efficiency Ratio (EER) | EER | 3,1 |
| Evaporator Water Flow Δt=5°C | m³/h | 79,8 |
| Cooling Capacity | kW | 412,0 |
| Cooling Capacity | kcal/h | 354,320 |
| Number of Compressors | pcs | 1 |
| Total Compressor Power | kW | 152 |
| Total Power Input | kW | 168,8 |
| Energy Efficiency Ratio (EER) | EER | 2,4 |
| Evaporator Water Flow Δt=5°C | m³/h | 70,9 |
| Cooling Capacity | kW | 333,0 |
| Cooling Capacity | kcal/h | 286,380 |
| Number of Compressors | pcs | 1 |
| Total Compressor Power | kW | 127,9 |
| Total Power Input | kW | 144,7 |
| Energy Efficiency Ratio (EER) | EER | 2,3 |
| Evaporator Water Flow Δt=5°C | m³/h | 57,3 |
| Fan Diameter | mm | Ø800 |
| Number of Fans | pcs | 12 |
| Air Flow | m³/h | 264.000 |
| Fan Motor Power | kW | 16,8 |
| Fan Sound Pressure Level (10 m) | dBA | 54 |
| Power Supply | 400 V / 3 PH / 50 Hz. | |
| Nominal Current | A | 144,3 |
| Max. Current | A | 465,6 |
| Length (L) | mm | 8810 |
| Width (W) | mm | 2250 |
| Height (H) | mm | 2740 |
| Water Inlet Connection | inch | 6" |
| Water Outlet Connection | inch | 6" |
| Weight | Kg | 3850 |
Specifications are indicative. Final performance is confirmed at design selection.
Technical drawing
Documents
| Cooling Capacity | kW | 537,0 |
|---|---|---|
| Cooling Capacity | kcal/h | 461,820 |
| Number of Compressors | pcs | 1 |
| Total Compressor Power | kW | 150 |
| Total Power Input | kW | 166,8 |
| Energy Efficiency Ratio (EER) | EER | 3,2 |
| Evaporator Water Flow Δt=5°C | m³/h | 92,4 |
| Cooling Capacity | kW | 481,0 |
| Cooling Capacity | kcal/h | 413,660 |
| Number of Compressors | pcs | 1 |
| Total Compressor Power | kW | 173 |
| Total Power Input | kW | 189,8 |
| Energy Efficiency Ratio (EER) | EER | 2,5 |
| Evaporator Water Flow Δt=5°C | m³/h | 82,7 |
| Cooling Capacity | kW | 387,0 |
| Cooling Capacity | kcal/h | 332,820 |
| Number of Compressors | pcs | 1 |
| Total Compressor Power | kW | 143,8 |
| Total Power Input | kW | 160,6 |
| Energy Efficiency Ratio (EER) | EER | 2,4 |
| Evaporator Water Flow Δt=5°C | m³/h | 66,6 |
| Fan Diameter | mm | Ø800 |
| Number of Fans | pcs | 12 |
| Air Flow | m³/h | 264.000 |
| Fan Motor Power | kW | 16,8 |
| Fan Sound Pressure Level (10 m) | dBA | 54 |
| Power Supply | 400 V / 3 PH / 50 Hz. | |
| Nominal Current | A | 155,3 |
| Max. Current | A | 495,6 |
| Length (L) | mm | 8810 |
| Width (W) | mm | 2250 |
| Height (H) | mm | 2740 |
| Water Inlet Connection | inch | 6" |
| Water Outlet Connection | inch | 6" |
| Weight | Kg | 4500 |
Specifications are indicative. Final performance is confirmed at design selection.
Technical drawing
Documents
| Cooling Capacity | kW | 621,0 |
|---|---|---|
| Cooling Capacity | kcal/h | 534,060 |
| Number of Compressors | pcs | 1 |
| Total Compressor Power | kW | 169 |
| Total Power Input | kW | 191,4 |
| Energy Efficiency Ratio (EER) | EER | 3,2 |
| Evaporator Water Flow Δt=5°C | m³/h | 106,8 |
| Cooling Capacity | kW | 556,0 |
| Cooling Capacity | kcal/h | 478,160 |
| Number of Compressors | pcs | 1 |
| Total Compressor Power | kW | 193 |
| Total Power Input | kW | 215,4 |
| Energy Efficiency Ratio (EER) | EER | 2,6 |
| Evaporator Water Flow Δt=5°C | m³/h | 95,6 |
| Cooling Capacity | kW | 448,0 |
| Cooling Capacity | kcal/h | 385,280 |
| Number of Compressors | pcs | 1 |
| Total Compressor Power | kW | 162,5 |
| Total Power Input | kW | 184,9 |
| Energy Efficiency Ratio (EER) | EER | 2,4 |
| Evaporator Water Flow Δt=5°C | m³/h | 77,1 |
| Fan Diameter | mm | Ø800 |
| Number of Fans | pcs | 16 |
| Air Flow | m³/h | 352.000 |
| Fan Motor Power | kW | 22,4 |
| Fan Sound Pressure Level (10 m) | dBA | 54 |
| Power Supply | 400 V / 3 PH / 50 Hz. | |
| Nominal Current | A | 174,9 |
| Max. Current | A | 510,8 |
| Length (L) | mm | 11050 |
| Width (W) | mm | 2250 |
| Height (H) | mm | 2740 |
| Water Inlet Connection | inch | 6" |
| Water Outlet Connection | inch | 6" |
| Weight | Kg | 4500 |
Specifications are indicative. Final performance is confirmed at design selection.
Technical drawing
Documents
| Cooling Capacity | kW | 670,0 |
|---|---|---|
| Cooling Capacity | kcal/h | 576,200 |
| Number of Compressors | pcs | 1 |
| Total Compressor Power | kW | 199 |
| Total Power Input | kW | 221,4 |
| Energy Efficiency Ratio (EER) | EER | 3,0 |
| Evaporator Water Flow Δt=5°C | m³/h | 115,2 |
| Cooling Capacity | kW | 598,0 |
| Cooling Capacity | kcal/h | 514,280 |
| Number of Compressors | pcs | 1 |
| Total Compressor Power | kW | 226 |
| Total Power Input | kW | 248,4 |
| Energy Efficiency Ratio (EER) | EER | 2,4 |
| Evaporator Water Flow Δt=5°C | m³/h | 102,9 |
| Cooling Capacity | kW | 480,0 |
| Cooling Capacity | kcal/h | 412,800 |
| Number of Compressors | pcs | 1 |
| Total Compressor Power | kW | 189 |
| Total Power Input | kW | 211,4 |
| Energy Efficiency Ratio (EER) | EER | 2,3 |
| Evaporator Water Flow Δt=5°C | m³/h | 82,6 |
| Fan Diameter | mm | Ø800 |
| Number of Fans | pcs | 16 |
| Air Flow | m³/h | 352.000 |
| Fan Motor Power | kW | 22,4 |
| Fan Sound Pressure Level (10 m) | dBA | 54 |
| Power Supply | 400 V / 3 PH / 50 Hz. | |
| Nominal Current | A | 210,4 |
| Max. Current | A | 626,8 |
| Length (L) | mm | 11050 |
| Width (W) | mm | 2250 |
| Height (H) | mm | 2740 |
| Water Inlet Connection | inch | 6" |
| Water Outlet Connection | inch | 6" |
| Weight | Kg | 5650 |
Specifications are indicative. Final performance is confirmed at design selection.
Technical drawing
Documents
| Cooling Capacity | kW | 169,8 |
|---|---|---|
| Cooling Capacity | kcal/h | 146,028 |
| Number of Compressors | pcs | 2 |
| Total Compressor Power | kW | 53 |
| Total Power Input | kW | 58,6 |
| Energy Efficiency Ratio (EER) | EER | 2,9 |
| Evaporator Water Flow Δt=5°C | m³/h | 29,2 |
| Cooling Capacity | kW | 149,2 |
| Cooling Capacity | kcal/h | 128,312 |
| Number of Compressors | pcs | 2 |
| Total Compressor Power | kW | 60,8 |
| Total Power Input | kW | 66,4 |
| Energy Efficiency Ratio (EER) | EER | 2,2 |
| Evaporator Water Flow Δt=5°C | m³/h | 25,7 |
| Cooling Capacity | kW | 121,4 |
| Cooling Capacity | kcal/h | 104,404 |
| Number of Compressors | pcs | 2 |
| Total Compressor Power | kW | 50,6 |
| Total Power Input | kW | 56,2 |
| Energy Efficiency Ratio (EER) | EER | 2,2 |
| Evaporator Water Flow Δt=5°C | m³/h | 20,9 |
| Fan Diameter | mm | Ø800 |
| Number of Fans | pcs | 4 |
| Air Flow | m³/h | 88.000 |
| Fan Motor Power | kW | 5,6 |
| Fan Sound Pressure Level (10 m) | dBA | 54 |
| Power Supply | 400 V / 3 PH / 50 Hz. | |
| Nominal Current | A | 73,4 |
| Max. Current | A | 216,8 |
| Length (L) | mm | 3250 |
| Width (W) | mm | 2250 |
| Height (H) | mm | 2740 |
| Water Inlet Connection | inch | 3" |
| Water Outlet Connection | inch | 3" |
| Weight | Kg | 2700 |
Specifications are indicative. Final performance is confirmed at design selection.
Technical drawing
Documents
| Cooling Capacity | kW | 213,0 |
|---|---|---|
| Cooling Capacity | kcal/h | 183,180 |
| Number of Compressors | pcs | 2 |
| Total Compressor Power | kW | 65,8 |
| Total Power Input | kW | 71,4 |
| Energy Efficiency Ratio (EER) | EER | 3,0 |
| Evaporator Water Flow Δt=5°C | m³/h | 36,6 |
| Cooling Capacity | kW | 187,2 |
| Cooling Capacity | kcal/h | 160,992 |
| Number of Compressors | pcs | 2 |
| Total Compressor Power | kW | 75,4 |
| Total Power Input | kW | 81 |
| Energy Efficiency Ratio (EER) | EER | 2,3 |
| Evaporator Water Flow Δt=5°C | m³/h | 32,2 |
| Cooling Capacity | kW | 152,4 |
| Cooling Capacity | kcal/h | 131,064 |
| Number of Compressors | pcs | 2 |
| Total Compressor Power | kW | 62,8 |
| Total Power Input | kW | 68,4 |
| Energy Efficiency Ratio (EER) | EER | 2,2 |
| Evaporator Water Flow Δt=5°C | m³/h | 26,2 |
| Fan Diameter | mm | Ø800 |
| Number of Fans | pcs | 4 |
| Air Flow | m³/h | 88.000 |
| Fan Motor Power | kW | 5,6 |
| Fan Sound Pressure Level (10 m) | dBA | 54 |
| Power Supply | 400 V / 3 PH / 50 Hz. | |
| Nominal Current | A | 85,4 |
| Max. Current | A | 260,8 |
| Length (L) | mm | 4330 |
| Width (W) | mm | 2250 |
| Height (H) | mm | 2740 |
| Water Inlet Connection | inch | 3" |
| Water Outlet Connection | inch | 3" |
| Weight | Kg | 2700 |
Specifications are indicative. Final performance is confirmed at design selection.
Technical drawing
Documents
| Cooling Capacity | kW | 246,0 |
|---|---|---|
| Cooling Capacity | kcal/h | 211,560 |
| Number of Compressors | pcs | 2 |
| Total Compressor Power | kW | 77,2 |
| Total Power Input | kW | 85,6 |
| Energy Efficiency Ratio (EER) | EER | 2,9 |
| Evaporator Water Flow Δt=5°C | m³/h | 42,3 |
| Cooling Capacity | kW | 215,4 |
| Cooling Capacity | kcal/h | 185,244 |
| Number of Compressors | pcs | 2 |
| Total Compressor Power | kW | 88,6 |
| Total Power Input | kW | 97 |
| Energy Efficiency Ratio (EER) | EER | 2,2 |
| Evaporator Water Flow Δt=5°C | m³/h | 37,0 |
| Cooling Capacity | kW | 173,4 |
| Cooling Capacity | kcal/h | 149,124 |
| Number of Compressors | pcs | 2 |
| Total Compressor Power | kW | 73,8 |
| Total Power Input | kW | 82,2 |
| Energy Efficiency Ratio (EER) | EER | 2,1 |
| Evaporator Water Flow Δt=5°C | m³/h | 29,8 |
| Fan Diameter | mm | Ø800 |
| Number of Fans | pcs | 6 |
| Air Flow | m³/h | 132.000 |
| Fan Motor Power | kW | 8,4 |
| Fan Sound Pressure Level (10 m) | dBA | 54 |
| Power Supply | 400 V / 3 PH / 50 Hz. | |
| Nominal Current | A | 88,2 |
| Max. Current | A | 286,4 |
| Length (L) | mm | 4330 |
| Width (W) | mm | 2250 |
| Height (H) | mm | 2740 |
| Water Inlet Connection | inch | 4" |
| Water Outlet Connection | inch | 4" |
| Weight | Kg | 3000 |
Specifications are indicative. Final performance is confirmed at design selection.
Technical drawing
Documents
| Cooling Capacity | kW | 282,8 |
|---|---|---|
| Cooling Capacity | kcal/h | 243,208 |
| Number of Compressors | pcs | 2 |
| Total Compressor Power | kW | 86,6 |
| Total Power Input | kW | 97,8 |
| Energy Efficiency Ratio (EER) | EER | 2,9 |
| Evaporator Water Flow Δt=5°C | m³/h | 48,6 |
| Cooling Capacity | kW | 244,0 |
| Cooling Capacity | kcal/h | 209,840 |
| Number of Compressors | pcs | 2 |
| Total Compressor Power | kW | 98,4 |
| Total Power Input | kW | 109,6 |
| Energy Efficiency Ratio (EER) | EER | 2,2 |
| Evaporator Water Flow Δt=5°C | m³/h | 42,0 |
| Cooling Capacity | kW | 199,6 |
| Cooling Capacity | kcal/h | 171,656 |
| Number of Compressors | pcs | 2 |
| Total Compressor Power | kW | 82,4 |
| Total Power Input | kW | 93,6 |
| Energy Efficiency Ratio (EER) | EER | 2,1 |
| Evaporator Water Flow Δt=5°C | m³/h | 34,3 |
| Fan Diameter | mm | Ø800 |
| Number of Fans | pcs | 8 |
| Air Flow | m³/h | 176.000 |
| Fan Motor Power | kW | 11,2 |
| Fan Sound Pressure Level (10 m) | dBA | 54 |
| Power Supply | 400 V / 3 PH / 50 Hz. | |
| Nominal Current | A | 102,2 |
| Max. Current | A | 318,4 |
| Length (L) | mm | 5450 |
| Width (W) | mm | 2250 |
| Height (H) | mm | 2740 |
| Water Inlet Connection | inch | 4" |
| Water Outlet Connection | inch | 4" |
| Weight | Kg | 3000 |
Specifications are indicative. Final performance is confirmed at design selection.
Technical drawing
Documents
| Cooling Capacity | kW | 328,2 |
|---|---|---|
| Cooling Capacity | kcal/h | 282,252 |
| Number of Compressors | pcs | 2 |
| Total Compressor Power | kW | 100 |
| Total Power Input | kW | 111,2 |
| Energy Efficiency Ratio (EER) | EER | 3,0 |
| Evaporator Water Flow Δt=5°C | m³/h | 56,5 |
| Cooling Capacity | kW | 288,0 |
| Cooling Capacity | kcal/h | 247,680 |
| Number of Compressors | pcs | 2 |
| Total Compressor Power | kW | 114,2 |
| Total Power Input | kW | 125,4 |
| Energy Efficiency Ratio (EER) | EER | 2,3 |
| Evaporator Water Flow Δt=5°C | m³/h | 49,5 |
| Cooling Capacity | kW | 234,0 |
| Cooling Capacity | kcal/h | 201,240 |
| Number of Compressors | pcs | 2 |
| Total Compressor Power | kW | 95,6 |
| Total Power Input | kW | 106,8 |
| Energy Efficiency Ratio (EER) | EER | 2,2 |
| Evaporator Water Flow Δt=5°C | m³/h | 40,2 |
| Fan Diameter | mm | Ø800 |
| Number of Fans | pcs | 8 |
| Air Flow | m³/h | 176.000 |
| Fan Motor Power | kW | 11,2 |
| Fan Sound Pressure Level (10 m) | dBA | 54 |
| Power Supply | 400 V / 3 PH / 50 Hz. | |
| Nominal Current | A | 105,2 |
| Max. Current | A | 354,4 |
| Length (L) | mm | 5450 |
| Width (W) | mm | 2250 |
| Height (H) | mm | 2740 |
| Water Inlet Connection | inch | 4" |
| Water Outlet Connection | inch | 4" |
| Weight | Kg | 3600 |
Specifications are indicative. Final performance is confirmed at design selection.
Technical drawing
Documents
| Cooling Capacity | kW | 382,8 |
|---|---|---|
| Cooling Capacity | kcal/h | 329,208 |
| Number of Compressors | pcs | 2 |
| Total Compressor Power | kW | 116,2 |
| Total Power Input | kW | 130,2 |
| Energy Efficiency Ratio (EER) | EER | 2,9 |
| Evaporator Water Flow Δt=5°C | m³/h | 65,8 |
| Cooling Capacity | kW | 338,6 |
| Cooling Capacity | kcal/h | 291,196 |
| Number of Compressors | pcs | 2 |
| Total Compressor Power | kW | 132,6 |
| Total Power Input | kW | 146,6 |
| Energy Efficiency Ratio (EER) | EER | 2,3 |
| Evaporator Water Flow Δt=5°C | m³/h | 58,2 |
| Cooling Capacity | kW | 275,4 |
| Cooling Capacity | kcal/h | 236,844 |
| Number of Compressors | pcs | 2 |
| Total Compressor Power | kW | 111 |
| Total Power Input | kW | 125 |
| Energy Efficiency Ratio (EER) | EER | 2,2 |
| Evaporator Water Flow Δt=5°C | m³/h | 47,4 |
| Fan Diameter | mm | Ø800 |
| Number of Fans | pcs | 10 |
| Air Flow | m³/h | 220.000 |
| Fan Motor Power | kW | 14 |
| Fan Sound Pressure Level (10 m) | dBA | 54 |
| Power Supply | 400 V / 3 PH / 50 Hz. | |
| Nominal Current | A | 120,2 |
| Max. Current | A | 370,4 |
| Length (L) | mm | 6570 |
| Width (W) | mm | 2250 |
| Height (H) | mm | 2740 |
| Water Inlet Connection | inch | 4" |
| Water Outlet Connection | inch | 4" |
| Weight | Kg | 3600 |
Specifications are indicative. Final performance is confirmed at design selection.
Technical drawing
Documents
| Cooling Capacity | kW | 436,0 |
|---|---|---|
| Cooling Capacity | kcal/h | 374,960 |
| Number of Compressors | pcs | 2 |
| Total Compressor Power | kW | 131,4 |
| Total Power Input | kW | 145,4 |
| Energy Efficiency Ratio (EER) | EER | 3,0 |
| Evaporator Water Flow Δt=5°C | m³/h | 75,0 |
| Cooling Capacity | kW | 385,0 |
| Cooling Capacity | kcal/h | 331,100 |
| Number of Compressors | pcs | 2 |
| Total Compressor Power | kW | 150,8 |
| Total Power Input | kW | 164,8 |
| Energy Efficiency Ratio (EER) | EER | 2,3 |
| Evaporator Water Flow Δt=5°C | m³/h | 66,2 |
| Cooling Capacity | kW | 313,0 |
| Cooling Capacity | kcal/h | 269,180 |
| Number of Compressors | pcs | 2 |
| Total Compressor Power | kW | 125,4 |
| Total Power Input | kW | 139,4 |
| Energy Efficiency Ratio (EER) | EER | 2,2 |
| Evaporator Water Flow Δt=5°C | m³/h | 53,8 |
| Fan Diameter | mm | Ø800 |
| Number of Fans | pcs | 10 |
| Air Flow | m³/h | 220.000 |
| Fan Motor Power | kW | 14 |
| Fan Sound Pressure Level (10 m) | dBA | 54 |
| Power Supply | 400 V / 3 PH / 50 Hz. | |
| Nominal Current | A | 138,2 |
| Max. Current | A | 390,4 |
| Length (L) | mm | 6570 |
| Width (W) | mm | 2250 |
| Height (H) | mm | 2740 |
| Water Inlet Connection | inch | 5" |
| Water Outlet Connection | inch | 5" |
| Weight | Kg | 4400 |
Specifications are indicative. Final performance is confirmed at design selection.
Technical drawing
Documents
| Cooling Capacity | kW | 468,0 |
|---|---|---|
| Cooling Capacity | kcal/h | 402,480 |
| Number of Compressors | pcs | 2 |
| Total Compressor Power | kW | 140,4 |
| Total Power Input | kW | 157,2 |
| Energy Efficiency Ratio (EER) | EER | 3,0 |
| Evaporator Water Flow Δt=5°C | m³/h | 80,5 |
| Cooling Capacity | kW | 414,0 |
| Cooling Capacity | kcal/h | 356,040 |
| Number of Compressors | pcs | 2 |
| Total Compressor Power | kW | 162 |
| Total Power Input | kW | 178,8 |
| Energy Efficiency Ratio (EER) | EER | 2,3 |
| Evaporator Water Flow Δt=5°C | m³/h | 71,2 |
| Cooling Capacity | kW | 337,4 |
| Cooling Capacity | kcal/h | 290,164 |
| Number of Compressors | pcs | 2 |
| Total Compressor Power | kW | 136,8 |
| Total Power Input | kW | 153,6 |
| Energy Efficiency Ratio (EER) | EER | 2,2 |
| Evaporator Water Flow Δt=5°C | m³/h | 58,0 |
| Fan Diameter | mm | Ø800 |
| Number of Fans | pcs | 12 |
| Air Flow | m³/h | 264.000 |
| Fan Motor Power | kW | 16,8 |
| Fan Sound Pressure Level (10 m) | dBA | 54 |
| Power Supply | 400 V / 3 PH / 50 Hz. | |
| Nominal Current | A | 154,8 |
| Max. Current | A | 477,6 |
| Length (L) | mm | 8810 |
| Width (W) | mm | 2250 |
| Height (H) | mm | 2740 |
| Water Inlet Connection | inch | 5" |
| Water Outlet Connection | inch | 5" |
| Weight | Kg | 4400 |
Specifications are indicative. Final performance is confirmed at design selection.
Technical drawing
Documents
| Cooling Capacity | kW | 540,0 |
|---|---|---|
| Cooling Capacity | kcal/h | 464,400 |
| Number of Compressors | pcs | 2 |
| Total Compressor Power | kW | 160,2 |
| Total Power Input | kW | 177 |
| Energy Efficiency Ratio (EER) | EER | 3,1 |
| Evaporator Water Flow Δt=5°C | m³/h | 92,9 |
| Cooling Capacity | kW | 478,0 |
| Cooling Capacity | kcal/h | 411,080 |
| Number of Compressors | pcs | 2 |
| Total Compressor Power | kW | 185,2 |
| Total Power Input | kW | 202 |
| Energy Efficiency Ratio (EER) | EER | 2,4 |
| Evaporator Water Flow Δt=5°C | m³/h | 82,2 |
| Cooling Capacity | kW | 389,8 |
| Cooling Capacity | kcal/h | 335,228 |
| Number of Compressors | pcs | 2 |
| Total Compressor Power | kW | 154 |
| Total Power Input | kW | 170,8 |
| Energy Efficiency Ratio (EER) | EER | 2,3 |
| Evaporator Water Flow Δt=5°C | m³/h | 67,0 |
| Fan Diameter | mm | Ø800 |
| Number of Fans | pcs | 12 |
| Air Flow | m³/h | 264.000 |
| Fan Motor Power | kW | 16,8 |
| Fan Sound Pressure Level (10 m) | dBA | 54 |
| Power Supply | 400 V / 3 PH / 50 Hz. | |
| Nominal Current | A | 171,8 |
| Max. Current | A | 537,6 |
| Length (L) | mm | 8810 |
| Width (W) | mm | 2250 |
| Height (H) | mm | 2740 |
| Water Inlet Connection | inch | 5" |
| Water Outlet Connection | inch | 5" |
| Weight | Kg | 5800 |
Specifications are indicative. Final performance is confirmed at design selection.
Technical drawing
Documents
| Cooling Capacity | kW | 590,0 |
|---|---|---|
| Cooling Capacity | kcal/h | 507,400 |
| Number of Compressors | pcs | 2 |
| Total Compressor Power | kW | 180,4 |
| Total Power Input | kW | 202,8 |
| Energy Efficiency Ratio (EER) | EER | 2,9 |
| Evaporator Water Flow Δt=5°C | m³/h | 101,5 |
| Cooling Capacity | kW | 526,0 |
| Cooling Capacity | kcal/h | 452,360 |
| Number of Compressors | pcs | 2 |
| Total Compressor Power | kW | 208 |
| Total Power Input | kW | 230,4 |
| Energy Efficiency Ratio (EER) | EER | 2,3 |
| Evaporator Water Flow Δt=5°C | m³/h | 90,5 |
| Cooling Capacity | kW | 422,0 |
| Cooling Capacity | kcal/h | 362,920 |
| Number of Compressors | pcs | 2 |
| Total Compressor Power | kW | 172,4 |
| Total Power Input | kW | 194,8 |
| Energy Efficiency Ratio (EER) | EER | 2,2 |
| Evaporator Water Flow Δt=5°C | m³/h | 72,6 |
| Fan Diameter | mm | Ø800 |
| Number of Fans | pcs | 16 |
| Air Flow | m³/h | 352.000 |
| Fan Motor Power | kW | 22,4 |
| Fan Sound Pressure Level (10 m) | dBA | 54 |
| Power Supply | 400 V / 3 PH / 50 Hz. | |
| Nominal Current | A | 191,4 |
| Max. Current | A | 580,8 |
| Length (L) | mm | 11050 |
| Width (W) | mm | 2250 |
| Height (H) | mm | 2740 |
| Water Inlet Connection | inch | 6" |
| Water Outlet Connection | inch | 6" |
| Weight | Kg | 5800 |
Specifications are indicative. Final performance is confirmed at design selection.
Technical drawing
Documents
| Cooling Capacity | kW | 690,0 |
|---|---|---|
| Cooling Capacity | kcal/h | 593,400 |
| Number of Compressors | pcs | 2 |
| Total Compressor Power | kW | 203,4 |
| Total Power Input | kW | 225,8 |
| Energy Efficiency Ratio (EER) | EER | 3,1 |
| Evaporator Water Flow Δt=5°C | m³/h | 118,7 |
| Cooling Capacity | kW | 618,0 |
| Cooling Capacity | kcal/h | 531,480 |
| Number of Compressors | pcs | 2 |
| Total Compressor Power | kW | 234 |
| Total Power Input | kW | 256,4 |
| Energy Efficiency Ratio (EER) | EER | 2,4 |
| Evaporator Water Flow Δt=5°C | m³/h | 106,3 |
| Cooling Capacity | kW | 494,0 |
| Cooling Capacity | kcal/h | 424,840 |
| Number of Compressors | pcs | 2 |
| Total Compressor Power | kW | 194,6 |
| Total Power Input | kW | 217 |
| Energy Efficiency Ratio (EER) | EER | 2,3 |
| Evaporator Water Flow Δt=5°C | m³/h | 85,0 |
| Fan Diameter | mm | Ø800 |
| Number of Fans | pcs | 16 |
| Air Flow | m³/h | 352.000 |
| Fan Motor Power | kW | 22,4 |
| Fan Sound Pressure Level (10 m) | dBA | 54 |
| Power Supply | 400 V / 3 PH / 50 Hz. | |
| Nominal Current | A | 221,4 |
| Max. Current | A | 680,8 |
| Length (L) | mm | 11050 |
| Width (W) | mm | 2250 |
| Height (H) | mm | 2740 |
| Water Inlet Connection | inch | 8" |
| Water Outlet Connection | inch | 8" |
| Weight | Kg | 5800 |
Specifications are indicative. Final performance is confirmed at design selection.
Technical drawing
Documents
| Cooling Capacity | kW | 802,0 |
|---|---|---|
| Cooling Capacity | kcal/h | 689,720 |
| Number of Compressors | pcs | 2 |
| Total Compressor Power | kW | 233,4 |
| Total Power Input | kW | 255,8 |
| Energy Efficiency Ratio (EER) | EER | 3,1 |
| Evaporator Water Flow Δt=5°C | m³/h | 137,9 |
| Cooling Capacity | kW | 710,0 |
| Cooling Capacity | kcal/h | 610,600 |
| Number of Compressors | pcs | 2 |
| Total Compressor Power | kW | 266 |
| Total Power Input | kW | 288,4 |
| Energy Efficiency Ratio (EER) | EER | 2,5 |
| Evaporator Water Flow Δt=5°C | m³/h | 122,1 |
| Cooling Capacity | kW | 576,0 |
| Cooling Capacity | kcal/h | 495,360 |
| Number of Compressors | pcs | 2 |
| Total Compressor Power | kW | 226,2 |
| Total Power Input | kW | 248,6 |
| Energy Efficiency Ratio (EER) | EER | 2,3 |
| Evaporator Water Flow Δt=5°C | m³/h | 99,1 |
| Fan Diameter | mm | Ø800 |
| Number of Fans | pcs | 16 |
| Air Flow | m³/h | 352.000 |
| Fan Motor Power | kW | 22,4 |
| Fan Sound Pressure Level (10 m) | dBA | 54 |
| Power Supply | 400 V / 3 PH / 50 Hz. | |
| Nominal Current | A | 243 |
| Max. Current | A | 816 |
| Length (L) | mm | 11050 |
| Width (W) | mm | 2250 |
| Height (H) | mm | 2740 |
| Water Inlet Connection | inch | 8" |
| Water Outlet Connection | inch | 8" |
| Weight | Kg | 7500 |
Specifications are indicative. Final performance is confirmed at design selection.
Technical drawing
Documents
| Cooling Capacity | kW | 928,0 |
|---|---|---|
| Cooling Capacity | kcal/h | 798,080 |
| Number of Compressors | pcs | 2 |
| Total Compressor Power | kW | 267,4 |
| Total Power Input | kW | 292,6 |
| Energy Efficiency Ratio (EER) | EER | 3,2 |
| Evaporator Water Flow Δt=5°C | m³/h | 159,6 |
| Cooling Capacity | kW | 824,0 |
| Cooling Capacity | kcal/h | 708,640 |
| Number of Compressors | pcs | 2 |
| Total Compressor Power | kW | 304 |
| Total Power Input | kW | 329,2 |
| Energy Efficiency Ratio (EER) | EER | 2,5 |
| Evaporator Water Flow Δt=5°C | m³/h | 141,7 |
| Cooling Capacity | kW | 666,0 |
| Cooling Capacity | kcal/h | 572,760 |
| Number of Compressors | pcs | 2 |
| Total Compressor Power | kW | 255,8 |
| Total Power Input | kW | 281 |
| Energy Efficiency Ratio (EER) | EER | 2,4 |
| Evaporator Water Flow Δt=5°C | m³/h | 114,6 |
| Fan Diameter | mm | Ø800 |
| Number of Fans | pcs | 18 |
| Air Flow | m³/h | 396.000 |
| Fan Motor Power | kW | 25,2 |
| Fan Sound Pressure Level (10 m) | dBA | 54 |
| Power Supply | 400 V / 3 PH / 50 Hz. | |
| Nominal Current | A | 288,6 |
| Max. Current | A | 931,2 |
| Length (L) | mm | 12170 |
| Width (W) | mm | 2250 |
| Height (H) | mm | 2740 |
| Water Inlet Connection | inch | 8" |
| Water Outlet Connection | inch | 8" |
| Weight | Kg | 7500 |
Specifications are indicative. Final performance is confirmed at design selection.
Technical drawing
Documents
| Cooling Capacity | kW | 1.074,0 |
|---|---|---|
| Cooling Capacity | kcal/h | 923,640 |
| Number of Compressors | pcs | 2 |
| Total Compressor Power | kW | 300 |
| Total Power Input | kW | 325,2 |
| Energy Efficiency Ratio (EER) | EER | 3,3 |
| Evaporator Water Flow Δt=5°C | m³/h | 184,7 |
| Cooling Capacity | kW | 962,0 |
| Cooling Capacity | kcal/h | 827,320 |
| Number of Compressors | pcs | 2 |
| Total Compressor Power | kW | 346 |
| Total Power Input | kW | 371,2 |
| Energy Efficiency Ratio (EER) | EER | 2,6 |
| Evaporator Water Flow Δt=5°C | m³/h | 165,5 |
| Cooling Capacity | kW | 774,0 |
| Cooling Capacity | kcal/h | 665,640 |
| Number of Compressors | pcs | 2 |
| Total Compressor Power | kW | 287,6 |
| Total Power Input | kW | 312,8 |
| Energy Efficiency Ratio (EER) | EER | 2,5 |
| Evaporator Water Flow Δt=5°C | m³/h | 133,1 |
| Fan Diameter | mm | Ø800 |
| Number of Fans | pcs | 18 |
| Air Flow | m³/h | 396.000 |
| Fan Motor Power | kW | 25,2 |
| Fan Sound Pressure Level (10 m) | dBA | 54 |
| Power Supply | 400 V / 3 PH / 50 Hz. | |
| Nominal Current | A | 310,6 |
| Max. Current | A | 991,2 |
| Length (L) | mm | 12170 |
| Width (W) | mm | 2250 |
| Height (H) | mm | 2740 |
| Water Inlet Connection | inch | 8" |
| Water Outlet Connection | inch | 8" |
| Weight | Kg | 8500 |
Specifications are indicative. Final performance is confirmed at design selection.
Technical drawing
Documents
| Cooling Capacity | kW | 1.242,0 |
|---|---|---|
| Cooling Capacity | kcal/h | 1.068,120 |
| Number of Compressors | pcs | 2 |
| Total Compressor Power | kW | 338 |
| Total Power Input | kW | 366 |
| Energy Efficiency Ratio (EER) | EER | 3,4 |
| Evaporator Water Flow Δt=5°C | m³/h | 213,6 |
| Cooling Capacity | kW | 1.112,0 |
| Cooling Capacity | kcal/h | 956,320 |
| Number of Compressors | pcs | 2 |
| Total Compressor Power | kW | 386 |
| Total Power Input | kW | 414 |
| Energy Efficiency Ratio (EER) | EER | 2,7 |
| Evaporator Water Flow Δt=5°C | m³/h | 191,3 |
| Cooling Capacity | kW | 896,0 |
| Cooling Capacity | kcal/h | 770,560 |
| Number of Compressors | pcs | 2 |
| Total Compressor Power | kW | 325 |
| Total Power Input | kW | 353 |
| Energy Efficiency Ratio (EER) | EER | 2,5 |
| Evaporator Water Flow Δt=5°C | m³/h | 154,1 |
| Fan Diameter | mm | Ø800 |
| Number of Fans | pcs | 20 |
| Air Flow | m³/h | 440.000 |
| Fan Motor Power | kW | 28 |
| Fan Sound Pressure Level (10 m) | dBA | 54 |
| Power Supply | 400 V / 3 PH / 50 Hz. | |
| Nominal Current | A | 349,8 |
| Max. Current | A | 1021,6 |
| Length (L) | mm | 13290 |
| Width (W) | mm | 2250 |
| Height (H) | mm | 2740 |
| Water Inlet Connection | inch | 10" |
| Water Outlet Connection | inch | 10" |
| Weight | Kg | 9750 |
Specifications are indicative. Final performance is confirmed at design selection.
Technical drawing
Documents
| Cooling Capacity | kW | 1.340,0 |
|---|---|---|
| Cooling Capacity | kcal/h | 1.152,400 |
| Number of Compressors | pcs | 2 |
| Total Compressor Power | kW | 398 |
| Total Power Input | kW | 426 |
| Energy Efficiency Ratio (EER) | EER | 3,1 |
| Evaporator Water Flow Δt=5°C | m³/h | 230,5 |
| Cooling Capacity | kW | 1.196,0 |
| Cooling Capacity | kcal/h | 1.028,560 |
| Number of Compressors | pcs | 2 |
| Total Compressor Power | kW | 452 |
| Total Power Input | kW | 480 |
| Energy Efficiency Ratio (EER) | EER | 2,5 |
| Evaporator Water Flow Δt=5°C | m³/h | 205,7 |
| Cooling Capacity | kW | 960,0 |
| Cooling Capacity | kcal/h | 825,600 |
| Number of Compressors | pcs | 2 |
| Total Compressor Power | kW | 378 |
| Total Power Input | kW | 406 |
| Energy Efficiency Ratio (EER) | EER | 2,4 |
| Evaporator Water Flow Δt=5°C | m³/h | 165,1 |
| Fan Diameter | mm | Ø800 |
| Number of Fans | pcs | 20 |
| Air Flow | m³/h | 440.000 |
| Fan Motor Power | kW | 28 |
| Fan Sound Pressure Level (10 m) | dBA | 54 |
| Power Supply | 400 V / 3 PH / 50 Hz. | |
| Nominal Current | A | 420,8 |
| Max. Current | A | 1253,6 |
| Length (L) | mm | 13290 |
| Width (W) | mm | 2250 |
| Height (H) | mm | 2740 |
| Water Inlet Connection | inch | 10" |
| Water Outlet Connection | inch | 10" |
| Weight | Kg | 11500 |
Specifications are indicative. Final performance is confirmed at design selection.
Technical drawing
Documents
Key features
- Rated for ambient temperatures up to 50 °C
- R-134A refrigerant
- Single (LS) and dual (LD) gas circuit configurations
- Screw compressor
- Microprocessor control unit
- Shell and tube evaporator
- Power and control panel to CE 2006/95/EC
- PLANER high-efficiency air-cooled condensers
- Axial fan
- Protective equipment for the refrigerant line
Technical specifications
| Cooling capacity | 60,7 – 960 kW |
|---|---|
| Refrigerant | R-134A |
| Compressor | Screw |
Specifications are indicative. Final performance is confirmed at design selection.
Related
You may also consider
HA-S Serisi
Air-cooled water chiller with hermetic scroll compressors and R-410A refrigerant. Single gas circuit, 1–3 compressor configurations.
13,5 – 375,9 kW
R-410A
Multicold HA-S Serisi
Air-cooled water chiller with multiple hermetic scroll compressors on two gas circuits, R-410A refrigerant.
77,6 – 751,8 kW
R-410A
Need help sizing the YHA-V Tropical Seri?
Send us your cooling load, fluid temperatures and ambient conditions — we'll confirm the right configuration for your process.
