H-S Serisi
Model H-S
The H-S Series combines a free-cooling coil and a mechanical circuit in one frame, driven by scroll compressors. As ambient drops the load shifts to free cooling and the compressors stage off, cutting energy use sharply through the shoulder seasons and winter. Four compressors run across two independent circuits.
- Cooling capacity
- 216 – 425 kW
- Refrigerant
- R 407 C
Select a model

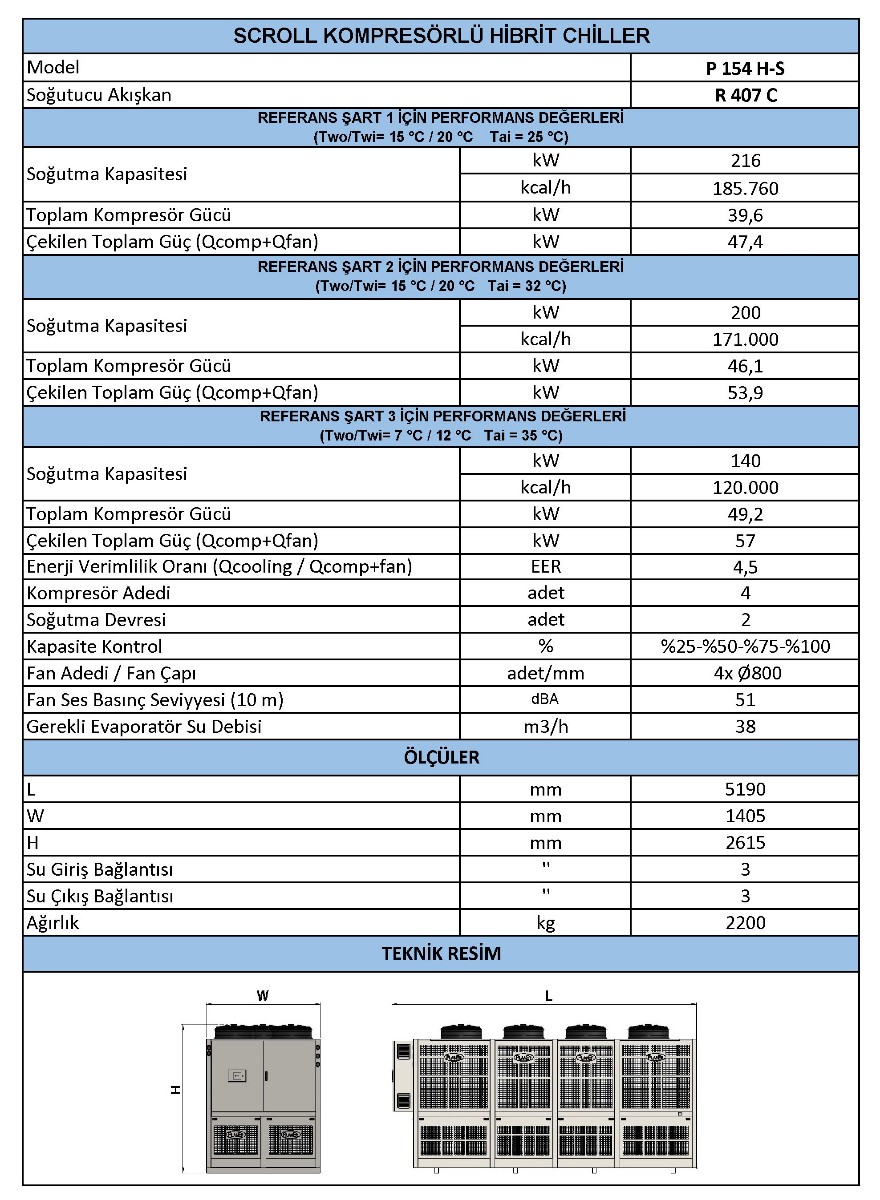

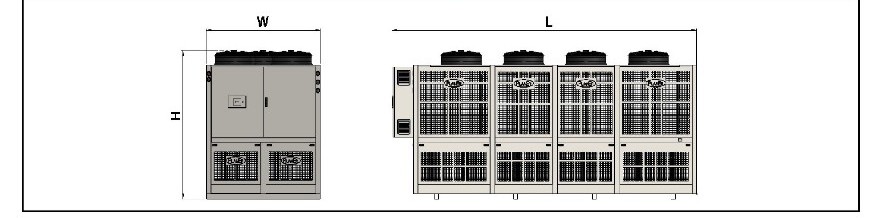

Performance figures, dimensions and the datasheet for every model in the series.
| Number of compressors | pcs | 4 |
|---|---|---|
| Refrigeration circuits | pcs | 2 |
| Capacity control | % | %25-%50-%75-%100 |
| Fan quantity / diameter | pcs / mm | 4x Ø800 |
| Fan sound pressure level (10 m) | dBA | 51 |
| Required evaporator water flow | m³/h | 38 |
| L | mm | 5190 |
| W | mm | 1405 |
| H | mm | 2615 |
| Water inlet connection | " | 3 |
| Water outlet connection | " | 3 |
| Weight | kg | 2200 |
| Cooling capacity | kW | 216 |
| Cooling capacity | kcal/h | 185.760 |
| Total compressor power | kW | 39,6 |
| Total power input | kW | 47,4 |
| Cooling capacity | kW | 200 |
| Cooling capacity | kcal/h | 171.000 |
| Total compressor power | kW | 46,1 |
| Total power input | kW | 53,9 |
| Cooling capacity | kW | 140 |
| Cooling capacity | kcal/h | 120.000 |
| Total compressor power | kW | 49,2 |
| Total power input | kW | 57 |
| Energy efficiency ratio (EER) | 4,5 | |
Specifications are indicative. Final performance is confirmed at design selection.

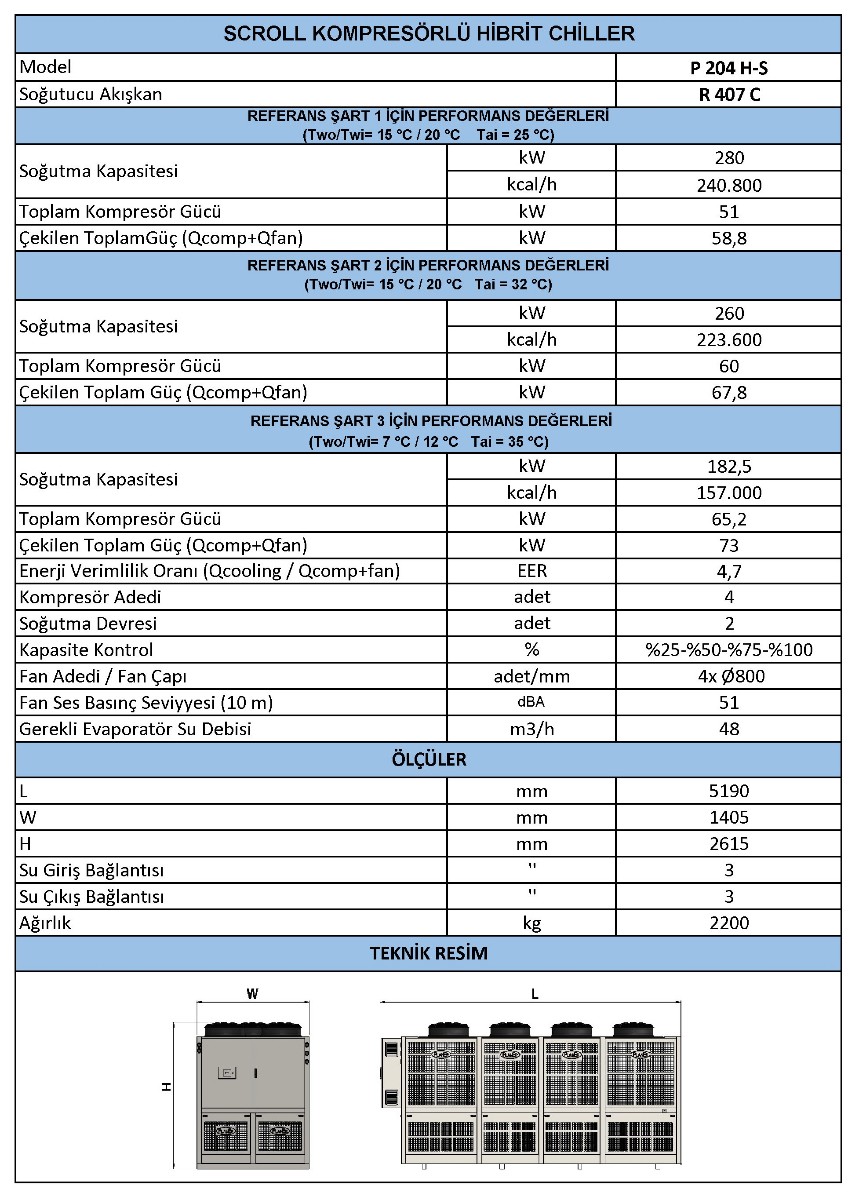

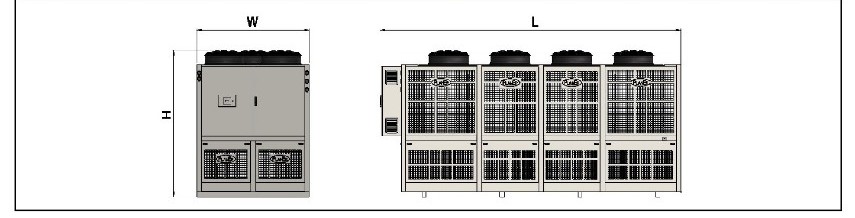

Technical drawing
| Number of compressors | pcs | 4 |
|---|---|---|
| Refrigeration circuits | pcs | 2 |
| Capacity control | % | %25-%50-%75-%100 |
| Fan quantity / diameter | pcs / mm | 4x Ø800 |
| Fan sound pressure level (10 m) | dBA | 51 |
| Required evaporator water flow | m³/h | 48 |
| L | mm | 5190 |
| W | mm | 1405 |
| H | mm | 2615 |
| Water inlet connection | " | 3 |
| Water outlet connection | " | 3 |
| Weight | kg | 2200 |
| Cooling capacity | kW | 280 |
| Cooling capacity | kcal/h | 240.800 |
| Total compressor power | kW | 51 |
| Total power input | kW | 58,8 |
| Cooling capacity | kW | 260 |
| Cooling capacity | kcal/h | 223.600 |
| Total compressor power | kW | 60 |
| Total power input | kW | 67,8 |
| Cooling capacity | kW | 182,5 |
| Cooling capacity | kcal/h | 157.000 |
| Total compressor power | kW | 65,2 |
| Total power input | kW | 73 |
| Energy efficiency ratio (EER) | 4,7 | |
Specifications are indicative. Final performance is confirmed at design selection.

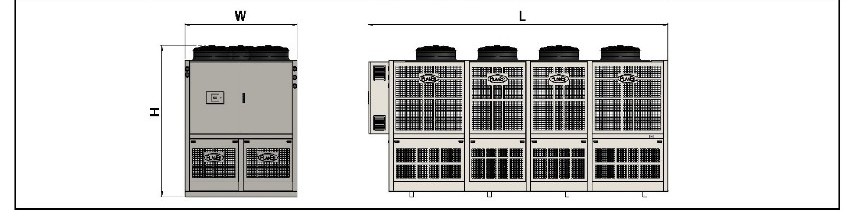

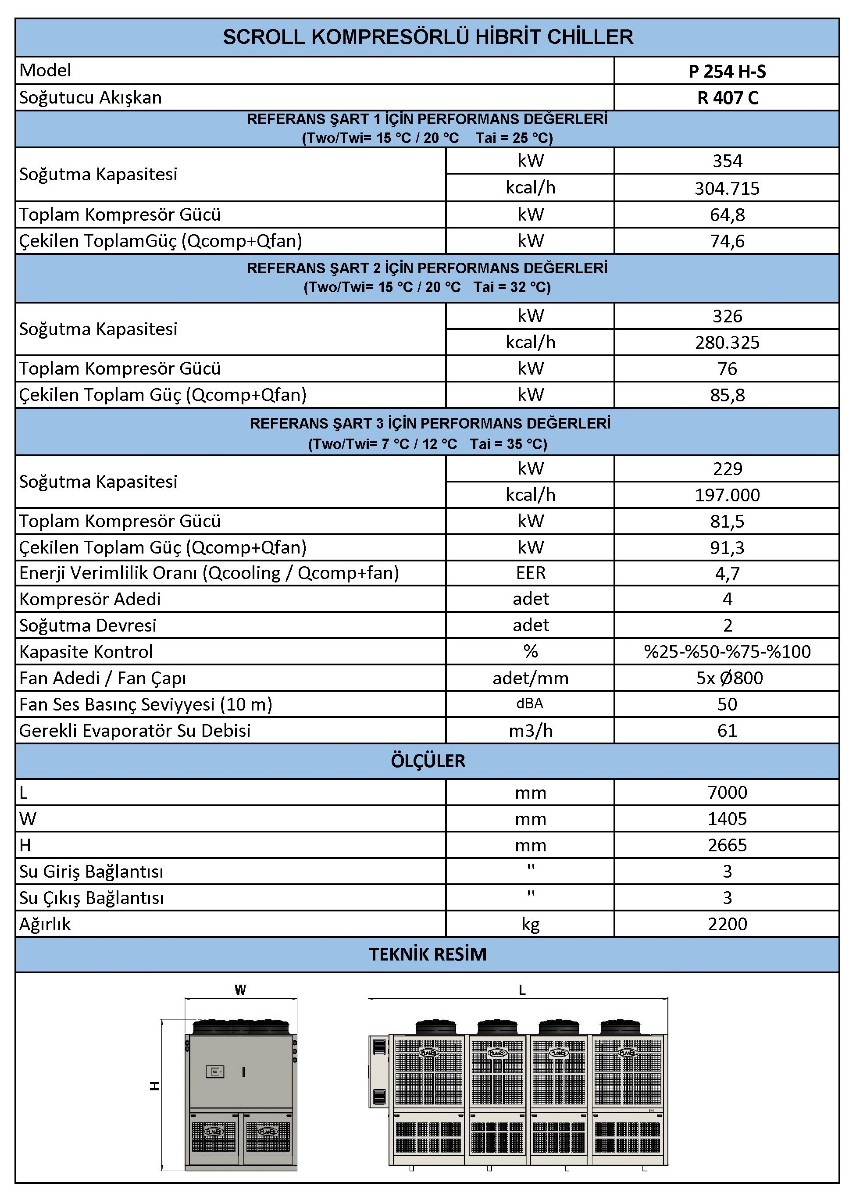

Technical drawing
| Number of compressors | pcs | 4 |
|---|---|---|
| Refrigeration circuits | pcs | 2 |
| Capacity control | % | %25-%50-%75-%100 |
| Fan quantity / diameter | pcs / mm | 5x Ø800 |
| Fan sound pressure level (10 m) | dBA | 50 |
| Required evaporator water flow | m³/h | 61 |
| L | mm | 7000 |
| W | mm | 1405 |
| H | mm | 2665 |
| Water inlet connection | " | 3 |
| Water outlet connection | " | 3 |
| Weight | kg | 2200 |
| Cooling capacity | kW | 354 |
| Cooling capacity | kcal/h | 304.715 |
| Total compressor power | kW | 64,8 |
| Total power input | kW | 74,6 |
| Cooling capacity | kW | 326 |
| Cooling capacity | kcal/h | 280.325 |
| Total compressor power | kW | 76 |
| Total power input | kW | 85,8 |
| Cooling capacity | kW | 229 |
| Cooling capacity | kcal/h | 197.000 |
| Total compressor power | kW | 81,5 |
| Total power input | kW | 91,3 |
| Energy efficiency ratio (EER) | 4,7 | |
Specifications are indicative. Final performance is confirmed at design selection.
Technical drawing
| Number of compressors | pcs | 4 |
|---|---|---|
| Refrigeration circuits | pcs | 2 |
| Capacity control | % | %25-%50-%75-%100 |
| Fan quantity / diameter | pcs / mm | 7x Ø800 |
| Fan sound pressure level (10 m) | dBA | 52 |
| Required evaporator water flow | m³/h | 73 |
| L | mm | 6170 |
| W | mm | 2305 |
| H | mm | 2630 |
| Water inlet connection | " | 3 |
| Water outlet connection | " | 3 |
| Weight | kg | 2200 |
| Cooling capacity | kW | 425 |
| Cooling capacity | kcal/h | 365.672 |
| Total compressor power | kW | 78,9 |
| Total power input | kW | 92,5 |
| Cooling capacity | kW | 391,3 |
| Cooling capacity | kcal/h | 336.569 |
| Total compressor power | kW | 92,2 |
| Total power input | kW | 105,9 |
| Cooling capacity | kW | 374 |
| Cooling capacity | kcal/h | 321.708 |
| Total compressor power | kW | 98,3 |
| Total power input | kW | 112 |
| Energy efficiency ratio (EER) | 4,5 | |
Specifications are indicative. Final performance is confirmed at design selection.

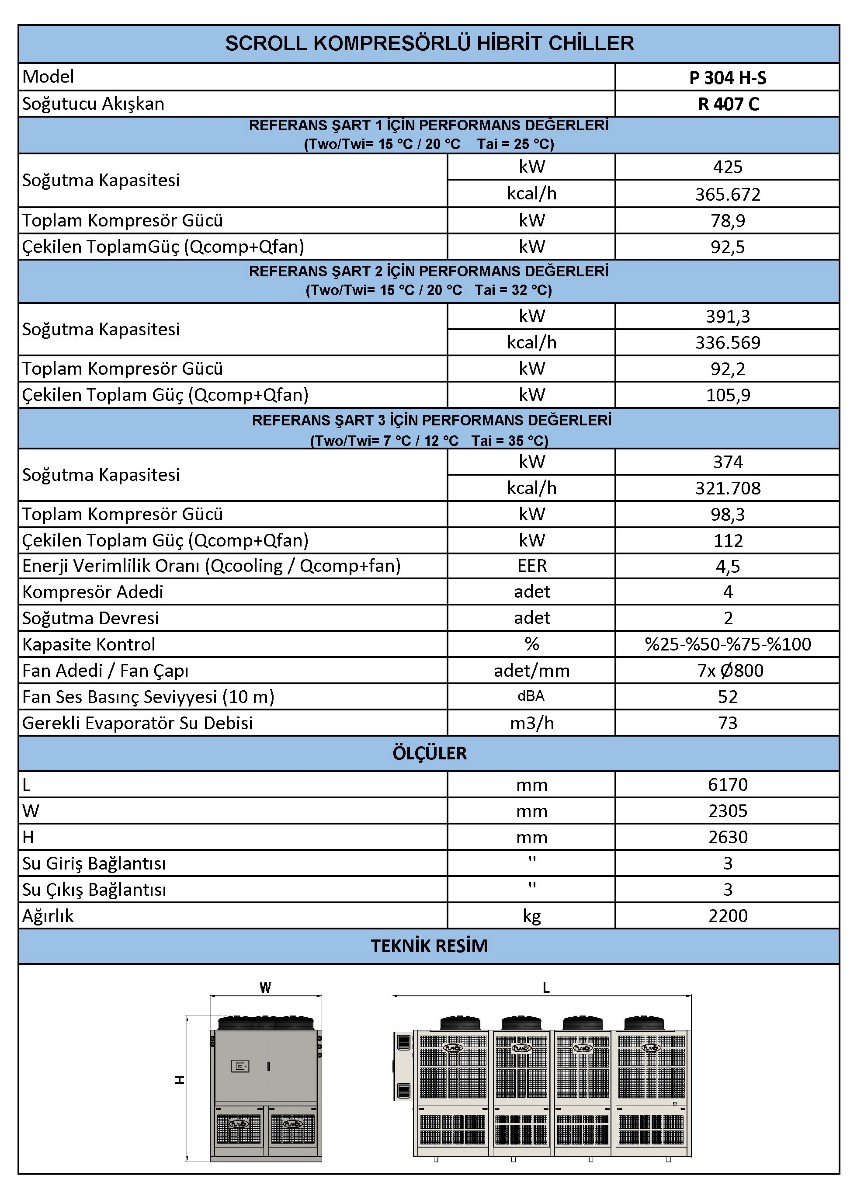

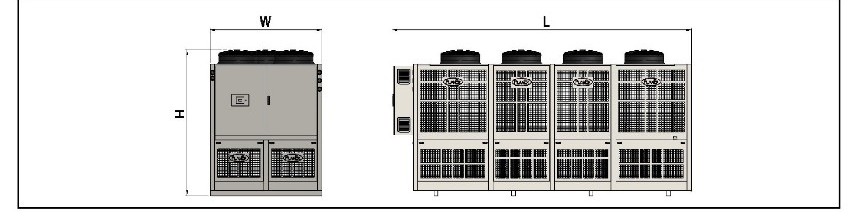

Technical drawing
Key features
Technical specifications
| Cooling capacity | 216 – 425 kW |
|---|---|
| Refrigerant | R 407 C |
Specifications are indicative. Final performance is confirmed at design selection.
Need help sizing the H-S Serisi?
Send us your cooling load, fluid temperatures and ambient conditions — we'll confirm the right configuration for your process.
